Liquid Silicone Rubber (LSR) Injection Molding

Liquid Silicone Rubber (LSR) Injection Molding


1. What is Liquid silicone rubber moulding?

Liquid Silicone Rubber (LSR) moulding, also known as Liquid Injection Molding (LIM), is a thermoset process involving mixing two compounds, which are then heat-cured within the mold using a platinum catalyst. This process results in the production of flexible silicone components. LSR moldings are characterized by their low compression set and excellent resistance to extreme temperatures, making them highly durable and well-suited for challenging applications. LSR elastomers offer remarkable optical clarity, resilience, and design versatility and maintain exceptional mechanical properties across a wide temperature range (-50°C to 250°C).

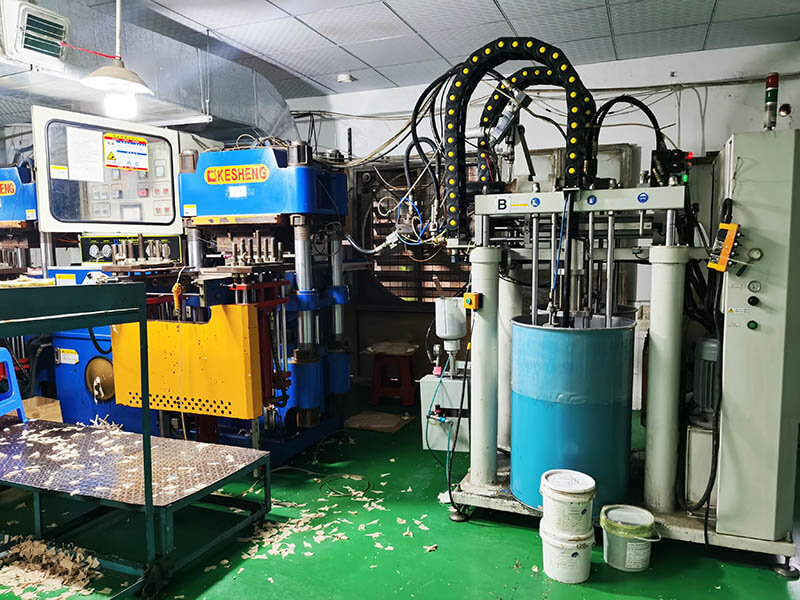

Liquid Silicone Rubber molding

LSR injection molding is an ideal choice for creating complex geometries and consolidating multiple functional elements into a single component due to its design and tooling adaptability. LIM offers significant benefits in terms of product reliability and overall tooling costs.

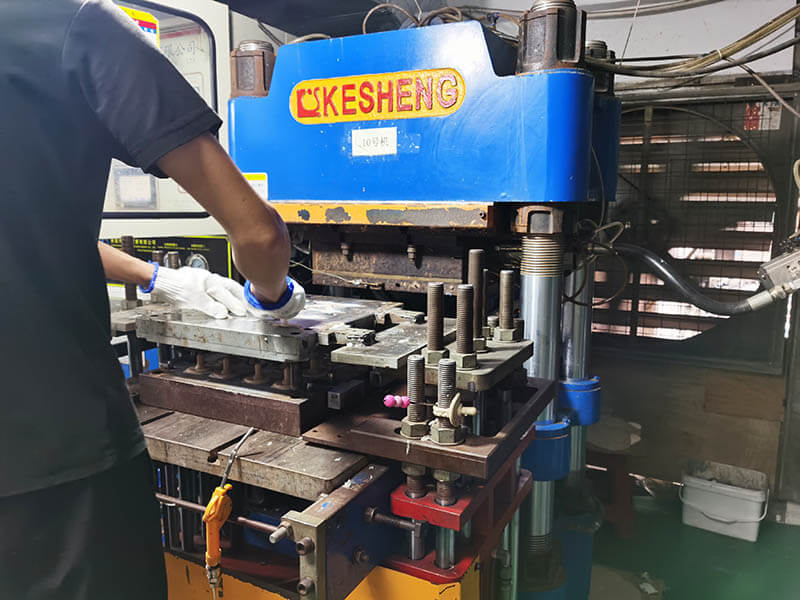

Liquid Silicone Rubber (LSR) Injection Molding

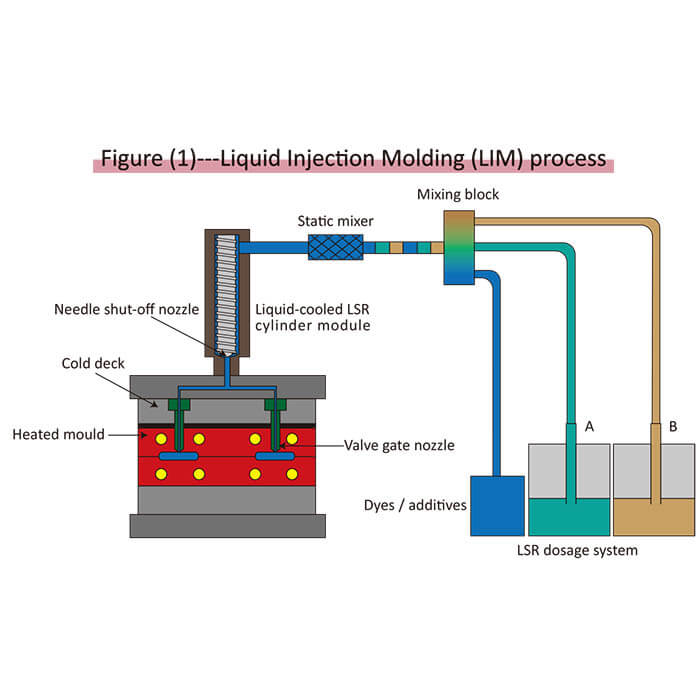

2. How does the LSR moulding process work?

The LSR moulding process typically involves the following steps:

(1) Mixing the components: The two components of LSR, Part A, and Part B, are mixed in a precise ratio using a metering system. This ensures a consistent mixture for the final product's properties and performance.

(2) Coloring and additives: Pigments and additives can be added to the LSR mixture depending on the desired color and specific application requirements.

(3) Machine selection and setup: An appropriate injection molding machine is selected based on the required clamping force, injection pressure, and shot size. The machine is then set up with the correct parameters to ensure smooth and efficient molding.

(4) Mold design considerations: The mold design plays a crucial role in determining the quality and consistency of the final product. Factors such as part geometry, gating, and cooling systems must be carefully considered to create a mold that allows for efficient production and minimal defects.

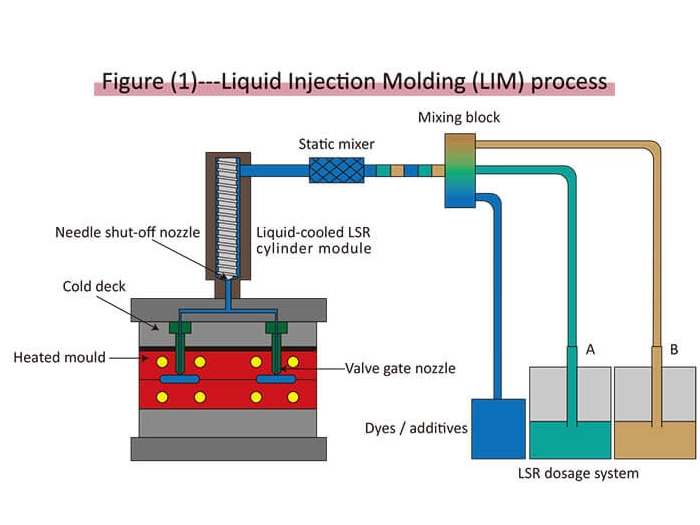

Liquid Silicone Rubber (LSR) Injection Molding 1

(5) Injection of LSR into the mold: The LSR mixture is injected into the cavity using a combination of pressure, speed, and temperature. The process parameters must be carefully controlled to ensure the material fills the mold evenly and completely.

(6) Curing process and temperature control: Once the LSR is injected, it undergoes a heat-induced curing process, solidifying the material into its final form. The temperature and duration of the curing process are crucial factors that impact the final product's properties and quality.

(7) Demolding and part ejection: After the curing process, the mold is opened, and the finished part is ejected. This step requires precise timing and temperature control to prevent part damage or deformation during removal.

(8) Part inspection and testing: After the parts are molded, they undergo a thorough inspection process to ensure they meet the required specifications and quality standards. This may include visual checks, dimensional measurements, and functional tests.

(9) Finishing processes and surface treatments: Depending on the application, additional post-processing steps may be necessary to achieve the desired surface finish or appearance. These steps include trimming, flashing, polishing, or applying coatings to enhance the part's performance or aesthetic appeal.

LSR Injection Molding

3. What is the difference between injection molding and LSR molding?

Injection molding and Liquid Silicone Rubber (LSR) molding are two distinct processes used for manufacturing parts with different materials and properties. Here are the primary differences between the two processes:

Material type: Injection molding is typically used for thermoplastic materials, which are solid at room temperature and melt when heated. LSR molding, on the other hand, is used for liquid silicone rubber, a thermosetting material that remains in a liquid state until it is heat-cured into a solid form.

Curing process: In injection molding, thermoplastic materials are heated until they melt and then injected into a mold, where they cool and solidify. In contrast, LSR molding involves injecting liquid silicone rubber into a mold, which is heat-cured into a solid form using a platinum catalyst.

Material properties: Thermoplastic materials used in injection molding can be rigid or flexible, depending on the material used. However, they are generally less resistant to temperature extremes and chemical exposure than LSR materials. LSR components have superior thermal stability, flexibility, and biocompatibility, making them suitable for various applications, including medical devices and high-temperature environments.

Reusability: Thermoplastic materials used in injection molding can be re-melted and re-molded multiple times without significantly degrading their properties. LSR, being a thermosetting material, cannot be re-melted or reprocessed once it has been cured.

Production speed: LSR molding typically has shorter cycle times than thermoplastic injection molding due to heat-induced curing. This allows for faster production of components and higher overall efficiency.

Part complexity and precision: LSR moulding is well-suited for producing intricate parts with thin walls and complex geometries, often with tighter tolerances than can be achieved with thermoplastic injection molding. The flexibility and flowability of LSR materials allow for easier filling of detailed mold cavities.

In summary, injection molding and LSR molding are two different processes used for manufacturing parts with distinct materials and properties. While injection molding is primarily used for thermoplastic materials, LSR molding is designed for liquid silicone rubber materials, each catering to specific applications and requirements.

4. Liquid Silicone Rubber (LSR) injection moulding Application

Liquid Silicone Rubber (LSR) injection moulding is used in various applications across various industries due to the unique properties and versatility of LSR materials. Some common applications of LSR injection molding include:

Medical Devices and Components: LSR's biocompatibility, serializability, and resistance to bacterial growth make it an ideal material for medical applications. Examples include catheters, respiratory masks, valves, seals, syringe stoppers, and implantable devices.

Automotive Industry: LSR's excellent resistance to extreme temperatures, chemicals, and weather conditions makes it suitable for various automotive components. Examples include gaskets, seals, hoses, diaphragms, spark plug boots, and electrical connector seals.

Electronics and Telecommunications: LSR's electrical insulating properties, thermal stability, and durability make it a popular choice for electronic components. Examples include keypads, electrical connectors, cable accessories, waterproof seals, and device protective covers.

Consumer Products: LSR's flexibility, soft-touch feel, and skin-friendliness suit various consumer products. Examples include:

  • Baby care products (pacifiers, bottle nipples).

  • Kitchen utensils.

  • Wearables (smartwatch bands).

  • Personal care items (toothbrushes, cosmetic applicators).

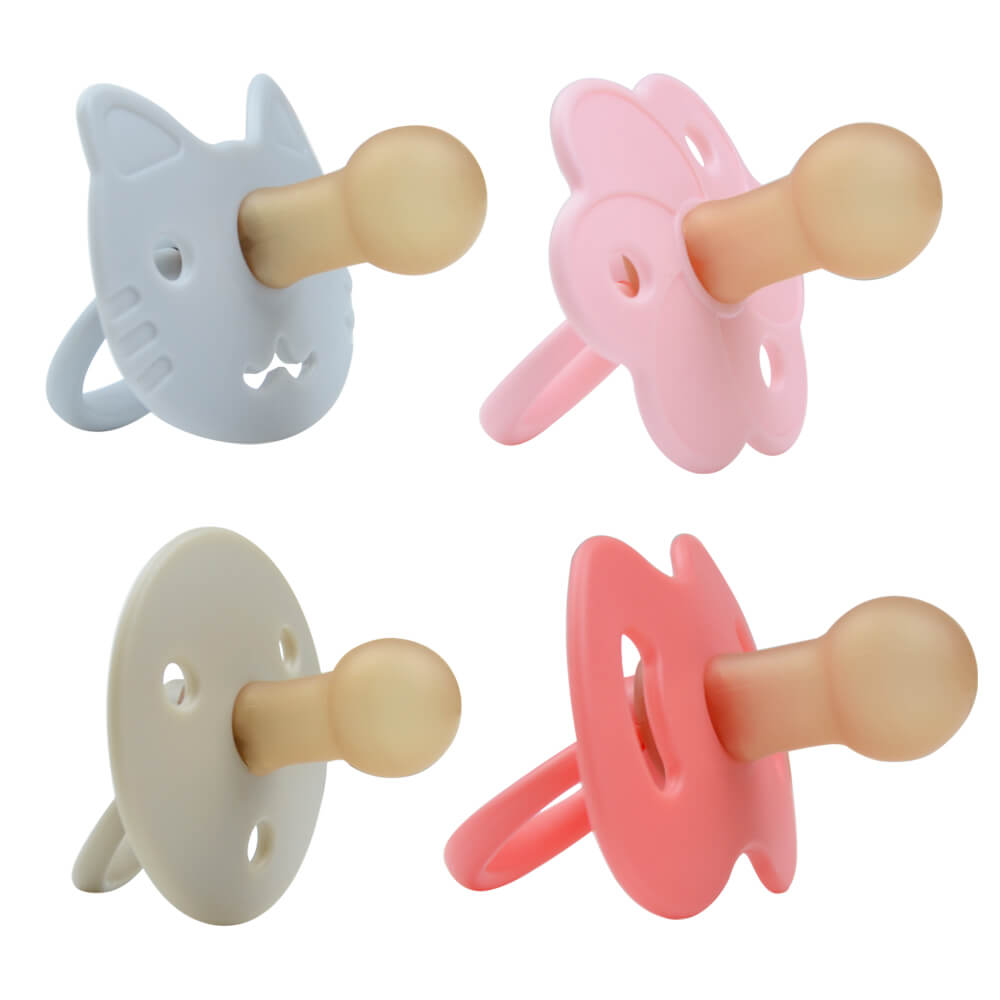

Silicone Pacifier

Industrial Components: LSR's mechanical strength, chemical resistance, and wide operating temperature range make it a popular choice for industrial applications. Examples include seals, gaskets, O-rings, valves, and diaphragms.

Optical Components: LSR's optical clarity and resistance to yellowing and degradation make it an excellent material for optical applications. Examples include lenses, light guides, and LED encapsulation.

Aerospace and Defense: LSR's ability to withstand harsh environments and maintain its properties under extreme conditions make it suitable for aerospace and defense applications. Examples include seals, gaskets, vibration dampeners, and protective covers.

These are just a few examples of LSR injection moulding applications showcasing the material's versatility and adaptability across various industries. The unique properties of LSR, such as flexibility, durability, and biocompatibility, make it an attractive option for designing and manufacturing complex components that meet demanding performance criteria.

5. Conclusion

The Liquid Silicone Rubber Injection Molding process offers numerous advantages for producing intricate, high-quality components in various industries. By understanding and carefully executing the key steps involved, such as material preparation, mold design, injection and curing process, and post-processing, manufacturers can achieve consistent results and create parts that meet the required specifications and quality standards.

Are you looking to start an LSR injection molding or Compression Molding project? Contact us today!
