Heat Transfer & Silicone Transfer Printing: A Complete Guide to Processes, Techniques & Applications

From custom apparel and promotional merchandise to precision-decorated electronics and industrial components, transfer printing has become one of the most versatile and widely adopted decoration techniques across global manufacturing. Two methods stand at the forefront of this field: heat transfer printing and silicone transfer printing — each offering unique capabilities that complement a broad spectrum of applications.

At Mitour Silicone, with over 18 years of experience in silicone product manufacturing and decoration, we utilize both techniques to deliver premium-quality custom products for brands worldwide. This comprehensive guide explores the science, processes, best practices, applications, and future trends of heat and silicone transfer printing — providing everything you need to understand and leverage these powerful techniques.

What Is Transfer Printing? An Overview

Transfer printing is a decoration method in which a design is first created on an intermediate carrier (paper, film, or plate) and then transferred onto a target substrate using heat, pressure, or both. This indirect approach enables high-precision decoration on surfaces that would be difficult or impossible to print on directly.

Two Primary Methods Covered in This Guide:

Part 1: Heat Transfer Printing

1. The Basic Concept of Heat Transfer Printing

Heat transfer printing works on a deceptively simple principle: a design is printed in reverse onto a specially coated transfer paper using heat-activated inks. When the paper is placed against the target substrate and subjected to controlled heat and pressure, the ink releases from the paper and permanently bonds with the surface.

Core Components:

• Transfer Paper — Specially coated carrier that holds and releases the ink

• Heat-Activated Inks — Formulated to sublimate or melt at specific temperatures

• Heat Press Machine — Applies precise, uniform heat and pressure

• Substrate — The target material receiving the design

2. Historical Background and Evolution

The evolution from manual, analog processes to digitally driven production has dramatically expanded the quality, speed, and application range of heat transfer printing.

3. Advantages of Heat Transfer Printing

• Versatility — Compatible with fabrics, ceramics, metals, glass, wood, and plastics

• Photo-Quality Output — Reproduces complex gradients, fine details, and full-color images

• Customization at Scale — Equally effective for single custom pieces and large production runs

• Fast Setup — Minimal preparation time compared to screen printing or embroidery

• Cost-Effective for Short Runs — No minimum order requirements for digital designs

• Consistent Reproduction — Digital design files ensure identical results across every print

4. Challenges and Considerations

The Heat Transfer Printing Process: Step by Step

Step 1: Design Preparation

• Create or finalize artwork using professional design software (Adobe Illustrator, Photoshop, CorelDRAW).

• Ensure designs are in the correct color mode (CMYK for print accuracy).

• Mirror/reverse the design — it will flip back to correct orientation during transfer.

• Set resolution to minimum 300 DPI for sharp, professional output.

Step 2: Printing onto Transfer Paper

• Print the mirrored design onto specialized transfer paper using a compatible printer.

• Paper selection is critical: sublimation paper, inkjet transfer paper, or laser transfer paper depending on the method.

• Allow ink to dry completely before proceeding.

Step 3: Substrate Preparation

• Clean the substrate thoroughly to remove dust, oils, or residues.

• Pre-press fabrics for 3–5 seconds to remove moisture and wrinkles.

• Apply primer or coating if required for specific substrates (e.g., hard surfaces).

Step 4: Press Settings Configuration

• Set temperature, pressure, and dwell time according to substrate and ink specifications.

• Typical settings vary significantly:

Step 5: Positioning and Protection

• Position the transfer paper precisely on the substrate, design-side down.

• Use heat-resistant tape to secure the paper and prevent shifting.

• Place a protective Teflon sheet or silicone pad over the transfer paper to distribute heat evenly.

Step 6: Applying Heat and Pressure

• Close the heat press and apply the pre-configured settings.

• Maintain consistent pressure throughout the dwell time.

• Monitor for any substrate movement or steam release.

Step 7: Peeling the Transfer Paper

• Remove the substrate from the press carefully.

• Peel the transfer paper according to the method:

  • Hot Peel — Remove paper immediately while still hot (faster, slightly textured finish)

  • Cold Peel — Allow to cool completely before peeling (sharper detail, smoother finish)

• Inspect the transferred design for completeness and quality.

Types of Heat Transfer Printing

Part 2: Silicone Transfer Printing

What Is Silicone Transfer Printing?

Silicone transfer printing (also known as pad printing with silicone inks) is a specialized printing technique that uses silicone-based inks and flexible silicone transfer pads to apply designs onto substrates — particularly those with irregular, curved, or textured surfaces that conventional printing cannot reach.

This method is widely used in the silicone product industry for decorating items such as phone cases, wristbands, baby products, promotional keychains, and kitchen accessories.

Why Silicone Inks?

• Exceptional adhesion to silicone and rubber substrates

• Outstanding flexibility — stretches and bends with the product

• Superior durability — resistant to abrasion, UV, and washing

• Wide color range with Pantone matching capability

• Food-safe and non-toxic formulations available

The Silicone Transfer Printing Process: Step by Step

Step 1: Design Preparation and Ink Selection

• Prepare vector artwork with clean, defined edges for optimal plate etching.

• Select silicone inks based on:

  • Substrate compatibility (silicone, rubber, plastic, fabric)

  • Required flexibility and stretch

  • Color requirements (Pantone matching)

  • End-use environment (food contact, outdoor, medical)

• Mix inks to precise Pantone specifications using calibrated mixing systems.

Step 2: Printing Plate (Cliché) Creation

• The design is etched or engraved onto a printing plate (cliché) made from polymer or steel.

• Etching depth determines ink volume and color intensity.

• Plates are inspected under magnification to verify design accuracy.

Step 3: Silicone Pad Selection

• Choose silicone pads based on:

  • Shape — Flat, round, or contoured to match substrate geometry

  • Hardness — Softer pads for irregular surfaces; firmer pads for flat, detailed designs

  • Size — Must fully cover the design area

Step 4: Ink Application to Plate

• Silicone ink is applied across the printing plate surface.

• A doctor blade removes excess ink, leaving ink only within the etched design areas.

• Ink viscosity is monitored and adjusted throughout production.

Step 5: Pad Pickup

• The silicone pad is pressed onto the inked plate.

• The ink adheres to the pad surface due to its tacky properties.

• The pad lifts away, carrying the complete inked design.

Step 6: Design Transfer to Substrate

• The ink-loaded pad is pressed firmly onto the substrate surface.

• The pad's flexibility allows it to conform to curved or irregular surfaces.

• The ink transfers completely from pad to substrate.

Step 7: Curing

• The printed substrate passes through a curing oven or UV curing station.

• Heat curing: 120–160°C for 5–15 minutes depending on ink formulation.

• UV curing: Instantaneous curing under UV light for compatible inks.

• Curing permanently bonds the ink to the substrate surface.

Best Practices for Perfect Silicone Transfer Printing

1. Choose Premium Silicone InksNever compromise on ink quality. Premium silicone-specific inks deliver superior adhesion, color vibrancy, flexibility, and longevity. Verify that inks are certified for your intended application (food-safe, skin-safe, outdoor-resistant).

2. Conduct Substrate Compatibility TestingBefore full production, test ink adhesion on your specific substrate. Perform cross-hatch adhesion tests, flexibility tests, and wash tests to confirm compatibility.

3. Prepare Surfaces MeticulouslyClean all substrates with isopropyl alcohol or appropriate solvent to remove oils, mold release agents, and contaminants. Surface preparation is the single most important factor in adhesion quality.

4. Control Ink Viscosity PreciselyMonitor ink viscosity throughout production using a viscosity cup. Adjust with approved thinners as needed. Incorrect viscosity leads to incomplete transfer, bleeding, or poor color density.

5. Optimize Printing ParametersFine-tune these variables for each job:

6. Maintain Plate CleanlinessClean printing plates regularly during production runs to prevent ink buildup that degrades print quality.

7. Match Pad Size to DesignUse pads that extend at least 10–15mm beyond the design perimeter to ensure complete, even transfer without edge distortion.

Part 3: Applications Across Industries

Where Transfer Printing Makes an Impact

1. Fashion & Apparel

• Brand labels, care instructions, and decorative graphics on garments

• Heat transfer for polyester sportswear; silicone transfer for rubber-feel logos

• Stretch-resistant silicone ink prints on activewear and swimwear

2. Promotional Products & Merchandise

• Custom logos on silicone wristbands, keychains, phone cases, and tote bags

• Personalized mugs, water bottles, and corporate gifts

• Event merchandise with full-color photo-quality designs

3. Baby & Consumer Products

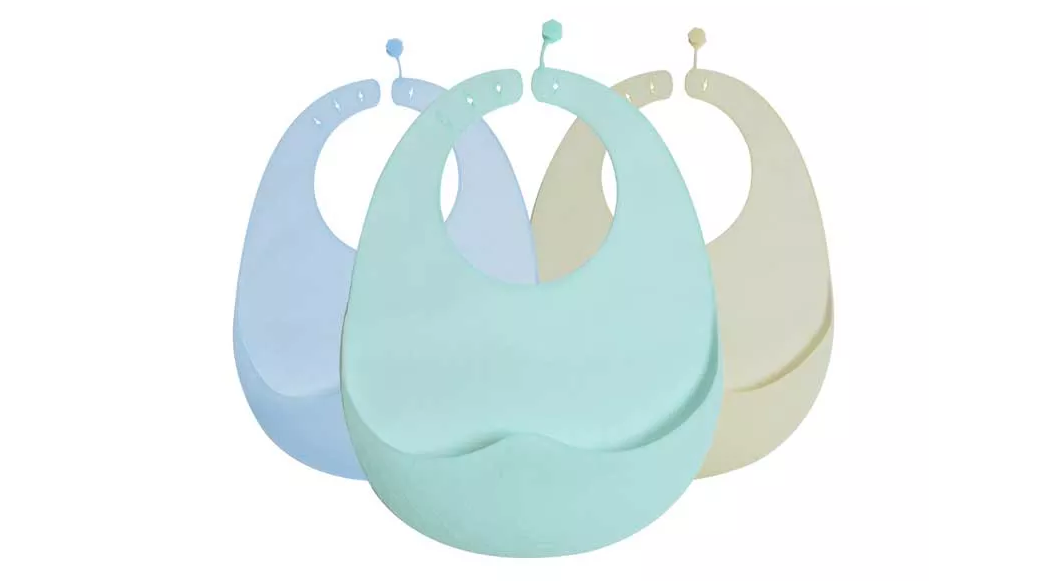

• Safe, non-toxic decoration on silicone bibs, teethers, and feeding accessories

• Character and brand graphics on baby product packaging and products

• Food-safe silicone ink printing on kitchen utensils and bakeware

4. Electronics & Technology

• Keyboard legends and device markings using silicone pad printing

• Durable branding on phone cases, earphone cases, and wearable devices

• Circuit board component identification

5. Automotive & Aerospace

• Interior component labeling and decoration

• High-temperature resistant markings on engine components

• Dashboard and control panel graphics

6. Medical Devices

• Biocompatible ink printing on medical-grade silicone products

• Device labeling that withstands sterilization cycles

• Patient-contact product decoration with non-toxic inks

7. Home Décor & Furnishings

• Artistic designs on cushions, curtains, and decorative tiles

• Personalized home accessories and wall art

• Custom kitchenware decoration

Part 4: Equipment & Materials

Essential Equipment for Transfer Printing

Part 5: Environmental Considerations & Sustainability

Toward Greener Transfer Printing

The printing industry is undergoing a significant sustainability transformation. At Mitour Silicone, we actively embrace eco-responsible practices:

Eco-Friendly Ink Development:

• Water-Based Silicone Inks — Eliminate solvent emissions and reduce VOC output

• UV-Curable Inks — Instant curing with minimal energy consumption and no solvent evaporation

• Heavy Metal-Free Pigments — Cadmium, lead, and chromium-free color systems

• Bio-Based Ink Components — Renewable raw material sourcing

Waste Reduction Strategies:

• Precision ink dispensing systems minimize overuse and waste

• Recycling programs for used transfer papers and packaging

• Closed-loop solvent recovery systems in cleaning operations

• Digital proofing eliminates physical sample waste

Energy Efficiency Measures:

• Energy-efficient heat press machines with rapid heat-up and standby modes

• LED UV curing systems consume 50–70% less energy than traditional UV lamps

• Production scheduling optimization to minimize equipment idle time

Future Sustainability Trends:

• Biodegradable transfer papers entering commercial availability

• Plant-based ink binders replacing petroleum-derived components

• Carbon-neutral certification programs for printing operations

• Digital-only proofing workflows eliminating physical sample production

Recent Advancements and Future Trends

Conclusion

Heat transfer printing and silicone transfer printing represent two of the most powerful and versatile decoration technologies available today. From the vibrant sublimation prints on polyester sportswear to the precise, flexible silicone ink graphics on curved phone cases and baby products, these methods continue to expand what's possible in product decoration and customization.

As technology advances and sustainability becomes increasingly central to manufacturing decisions, both methods are evolving rapidly — offering higher quality, greater efficiency, and reduced environmental impact.

At Mitour Silicone, we leverage both heat transfer and silicone transfer printing in our manufacturing operations, delivering premium decorated silicone products that meet the highest standards of quality, safety, and visual excellence. Whether you need custom-branded silicone products or are exploring decoration options for your product line, our team is ready to help.

FAQs

Q: What is the difference between heat transfer printing and silicone transfer printing?

A: Heat transfer printing uses heat and pressure to transfer designs from carrier paper to a substrate. Silicone transfer printing (pad printing) uses a flexible silicone pad to pick up ink from an engraved plate and deposit it onto the substrate — making it ideal for curved, irregular, or textured surfaces.

Q: Which printing method is best for silicone products?

A: Silicone transfer printing (pad printing with silicone inks) is generally preferred for silicone products due to its superior adhesion, flexibility, and ability to conform to irregular surfaces. Heat transfer can also be used for flat silicone surfaces with appropriate ink systems.

Q: Can you print multiple colors in one production run?

A: Yes. Multi-color pad printing machines can apply multiple colors in a single pass using separate plates and pads for each color. Heat transfer printing handles full-color designs in a single transfer step.

Q: Are your printing inks food-safe and non-toxic?

A: Yes. We use FDA-approved, LFGB-certified, food-safe silicone inks for all products that come into contact with food or are used by children. Full certification documentation is available upon request.

Q: What is the minimum order quantity for custom printed silicone products?

A: MOQ varies by product type and decoration complexity. Contact our sales team with your specific requirements for detailed pricing and lead time information.

Q: Can you match specific Pantone colors for our brand?

A: Absolutely. We offer precise Pantone color matching using calibrated spectrophotometers. Provide your Pantone codes, and we'll produce accurate color matches within Delta E < 1.0.

Q: Do you offer eco-friendly printing options?

A: Yes. We offer water-based silicone inks and UV-curable ink systems as eco-friendly alternatives to traditional solvent-based inks. Ask our team about sustainable printing options for your project.

Q: How durable are the printed designs on silicone products?

A: When using premium silicone-specific inks with proper curing, printed designs on silicone products are highly durable — resistant to washing, UV exposure, abrasion, and flexing. Durability testing data is available for specific ink-substrate combinations.
