Product Description
The collapsible silicone sport bottle uses a pure concertina-fold silicone body — no internal coil spring, no rigid skeleton, no plastic insert required to maintain shape. When empty, the walls fold on molded crease lines engineered into the silicone during compression molding. The result: a 650 ml bottle collapses to approximately 45 mm in height, fitting flat into a jersey pocket, a small hip pack, or clipped to a carabiner on a gym bag. For a brand owner building a product range around "minimal carry" or a wholesale buyer looking for a bottle that visually demonstrates value, the collapse function is the story.
The standard cap is a push-pull sports spout that delivers a controlled flow rate without requiring the user to unscrew a lid mid-run or mid-set. For cycling and running-specific OEM orders, Mitour also supplies a bite-valve cap compatible with the same bottle body — no new mold required, just a different cap configuration. Both cap options are made from the same FDA/LFGB silicone and are dishwasher-safe. Flow rate is tested and consistent batch-to-batch due to Mitour's Solid-to-Liquid proprietary manufacturing process, which produces tighter dimensional tolerances on cap sealing surfaces than standard compression molding.
A critical failure mode of low-quality collapsible bottles is leaking at partial compression — when the bottle is half-empty and half-folded in a bag. Mitour's concertina fold geometry is designed with a radial pressure seal at the base where the folded section meets the cap thread, ensuring the bottle is leak-proof whether fully expanded, partially collapsed, or fully flattened. Each batch is 100% leak-tested at the quality control stage before packaging.
Every unit ships with a silicone carabiner clip that allows the bottle to hang from a bag handle, gym rack, or belt loop when collapsed. For wholesale and promotional buyers, this is a built-in value-add that requires no additional sourcing. The carabiner can be color-matched to the bottle body or branded with a debossed logo. For retail-packaged SKUs, the collapsed bottle + carabiner fits compactly in a hang-tag polybag that requires no shelf footprint — important for gym chains and sports retailers with limited shelf space.

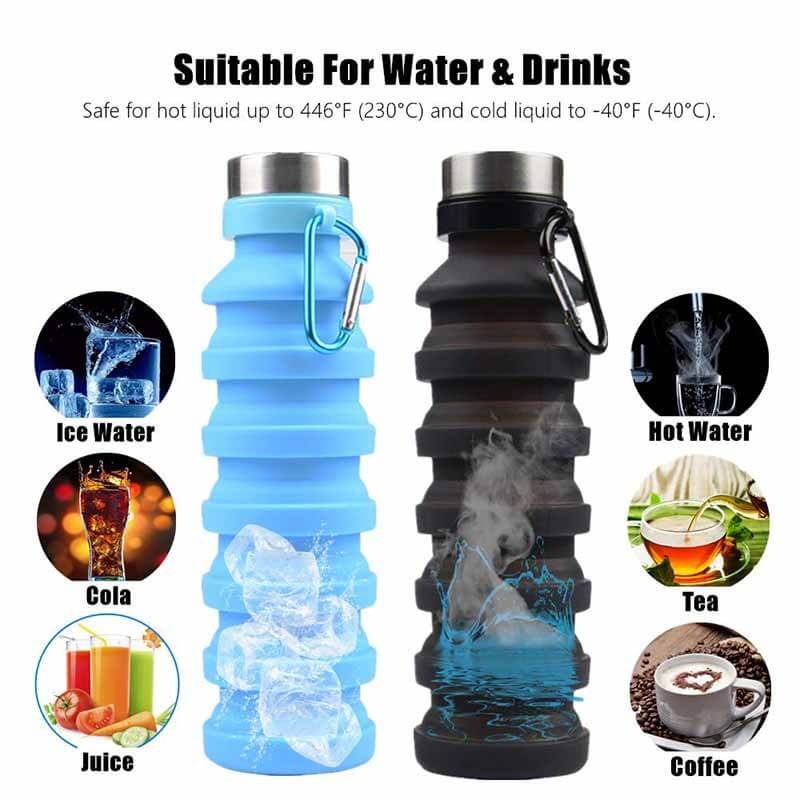

Temperature range from -40°C to 230°C covers every realistic sport hydration use case: ice cube storage, frozen pre-hydration packs, post-workout hot-rinse cleaning, and boiling water decontamination in camp settings. Unlike single-wall stainless steel bottles or hard-plastic sport bottles, the silicone body can be turned inside-out for thorough cleaning — a hygiene feature that resonates with athletes who track microbiome health and with gym facility managers buying bottles for shared use.

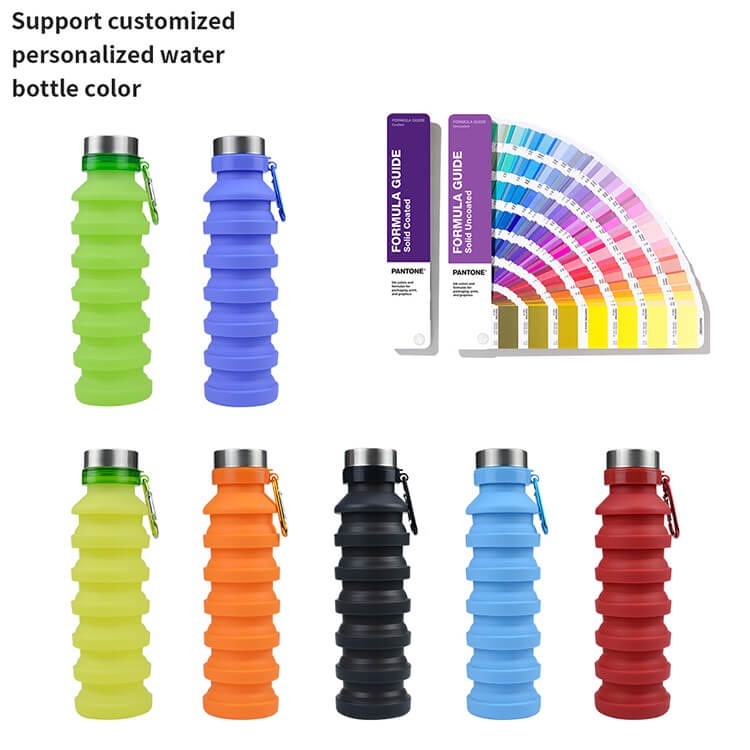

Silicone's inherent material properties allow more saturated, consistent color reproduction than HDPE or LDPE plastic. Mitour's in-house color matching laboratory maintains Pantone reference libraries for all production runs, and each batch is color-checked against the approved reference before shipment. For a distributor running a catalog with 12 SKU colors, this means the "neon orange" in the June shipment matches the "neon orange" in the December restock — without re-approving samples.
For buyers evaluating material and form-factor choices, here's how the Mitour Collapsible Silicone Sport Water Bottle compares to a hard plastic sport bottle in the same category:
Criteria | Mitour Collapsible Silicone Bottle | Hard Plastic Sport Bottle |
Collapsed Size | ~45 mm height (650 ml) — fits in jersey pocket | Rigid form; no collapse; full 200 mm height always |
Material Safety | FDA + LFGB + BPA-free certified platinum silicone | BPA-free claims vary; some grades use BPS substitutes |
Temperature Range | -40°C to 230°C; freezer, boiling water, dishwasher safe | Typically 0°C to 70°C; no boiling water; some warp in dishwasher |
Cleanability | Body inverts inside-out for full interior access | Interior inaccessible; bottle brush required |
Weight | ~85 g (650 ml) | ~120–180 g (650 ml hard plastic) |
Shelf Life | Indefinite; silicone does not yellow or become brittle | May yellow, crack, or off-gas after 2–3 years |
MOQ (OEM) | 300 pcs (Mitour direct) | Often 500–1,000 pcs minimum |
Certifications | ISO 9001, BSCI, FDA, LFGB, Disney/Walmart/Target audited | Dependent on supplier; often FDA only |
Bottom line: Buyers choosing between collapsible silicone and hard plastic for OEM sport bottle programs consistently find that silicone delivers superior material safety documentation, pack-size efficiency, and temperature versatility — at a comparable or lower total landed cost once compliance rework is factored in.
Item | Detail |
Capacity | 500 ml · 650 ml · 750 ml |
Material | 100% Food-Grade Platinum-Cured Silicone (FDA / LFGB / BPA-free) |
Temperature Range | -40°C to 230°C |
Expanded Size (H × Dia.) | 650 ml: approx. 200 mm × 68 mm |
Collapsed Height | Approx. 45 mm (650 ml) |
Weight (Empty) | Approx. 85 g (650 ml, no cap) |
Cap Type | Push-pull sports spout (standard); bite valve cap (optional); screw cap (optional) |
Carabiner | Silicone carabiner clip included (standard); color-match or logo available |
Color Options | 18 standard colors; Pantone custom matching available |
Logo Methods | Silk Screen, Laser Engraving, UV Full-color Print, Heat Transfer, Water Transfer, Roller Print |
MOQ | 300 pcs |
Sample Lead Time | 7 business days |
Production Lead Time | 25–35 business days |
Packaging | Polybag with header card; retail box; hang-tag polybag (collapsed form fits flat) |
Certifications | FDA, LFGB, BPA-Free, ROHS, REACH, EN71 |
Factory Audits | ISO 9001:2015, ISO 14001, BSCI, SEDEX, Disney (2022), Walmart (2019), Target (2019) |
For a gym accessories brand building a product ecosystem (water bottle + resistance bands + foam roller), the collapsible silicone sport bottle fills the "everyday carry" slot at a price point that doesn't compete with the premium stainless steel bottle in the lineup. It collapses to nearly nothing when not in use, which means customers don't think twice about throwing it in the gym bag — leading to higher purchase frequency and repeat orders. Brand owners can specify their logo color scheme on both the bottle body and the carabiner, creating a cohesive branded kit when the accessories are sold as a bundle.
Race directors and sports event organizers sourcing participant kits look for a water bottle that can double as the race-day hydration vessel. The collapsible bottle ships flat, reducing pre-event storage space by 60% compared to rigid bottles, and participants can collapse it after the race for effortless transport home. For mass-participation events (5,000–50,000+ units), Mitour's production capacity (30,000 units/day) handles the volume within standard lead times. Pantone-matched printing of race livery (sponsor logos, event branding) is available from 500 units.
A wholesale buyer stocking a 200-SKU sporting goods catalog benefits from the collapsible bottle's storage efficiency: a full pallet of collapsed silicone sport bottles occupies roughly 40% of the shelf space required by equivalent rigid bottle units. This improves warehouse turn economics and allows smaller retailers to carry more SKU diversity. The product also has a proven reorder cycle: once a retail customer buys the bottle, they return for a replacement (or additional colors) within 12–18 months, driving distributor reorders.
As corporate sustainability programs replace single-use plastic bottles at conferences, seminars, and trade shows, the collapsible silicone sport bottle is one of the highest-perceived-value eco-alternatives. It communicates environmental commitment (reusable, silicone, BPA-free), fits in a swag bag without adding bulk, and carries a logo silk-screened in the client's brand colors. For ASI/SAGE/PPAI distributors, the bottle has a distinctive product story that supports a premium price point in program proposals.
The FDA and LFGB certifications matter to parents choosing equipment for school-age athletes. A youth sports club sourcing custom water bottles for a season needs: certified materials, visible club branding, easy-clean design, and a price that works in a fundraising or sponsor-supported budget. The collapsible bottle checks all four: certifications are downloadable as PDFs, silk screen club logo at 300 pcs MOQ, turn-inside-out cleanability, and competitive FOB pricing that lands under typical per-unit fundraising budgets at 1,000+ pcs.
Body Color: 18 standard colors available without surcharge. Sport-appropriate neons (neon yellow, neon orange, neon green, neon pink) are in the standard palette. Custom Pantone matching from 500 pcs.
Logo & Branding:
Silk screen: most popular for sport bottles; 1–4 spot colors; sharp edges on silicone texture; MOQ 300 pcs
Laser engraving: premium deboss effect for mid-to-high-end brand positioning; MOQ 300 pcs
UV full-color: photographic sponsorship logos, gradient athlete photography; MOQ 500 pcs
Heat transfer + roller print: full-body wrap graphics for maximum visual impact; MOQ 1,000 pcs
Carabiner Options: Standard silicone carabiner (color-matched or contrasting). Custom logo on carabiner via deboss available from 1,000 pcs. Metal carabiner upgrade available (MOQ 500 pcs).
Cap Options: Push-pull spout, bite valve, screw cap — all standard production molds, no new tooling. Custom branded cap color from MOQ 300 pcs.
Packaging Options:
Polybag: collapsed flat for maximum pallet efficiency
Retail hang-tag polybag: bottle + carabiner assembled, with custom header card
Gift box: bottle + carabiner + branded microfiber pouch in a custom printed mailer box
MOQ Tiers:
Quantity | Notes |
300 pcs | Stock colors, silk screen or laser engraving |
500 pcs | Custom Pantone color, UV full-color print |
1,000 pcs | Custom packaging, metal carabiner, roller print |
5,000+ pcs | Allocated production slot, FOB negotiation |
Inquiry — Submit quantity, color, logo, and packaging specs. 24-hour response with availability confirmation.
Quotation — Itemized FOB quote within 48 hours. Includes per-unit cost, tooling (if applicable), packaging, and freight estimate.
Sample — Pay sample fee; receive physical sample in 7 business days via DHL/FedEx.
Order Confirmation — Approve sample; sign PO; pay 30% deposit.
Production — 25–35 business days. Three-stage QC: raw material, in-process, pre-shipment.
Pre-Shipment Inspection — Photo report sent; third-party inspection (SGS, Bureau Veritas) available on request.
Delivery — LCL/FCL from Shenzhen; all export documents provided.
For Sports Brand Owners & OEM Buyers
Q1: Can I source a custom mold for a modified collapse geometry — for example, a bottle that collapses into a disc shape rather than a cylinder?
Yes. ODM mold development is a core service. A disc-collapse or flat-fold geometry requires new tooling (typically $1,200–$2,500 USD depending on complexity), a 3D CAD development phase (2–3 weeks), and T1 sample approval before production. Mitour's in-house engineering team has developed 300+ patented silicone product geometries and can assess feasibility for a novel collapse mechanism within 5 business days of receiving a brief or sketch. The mold is exclusively yours after payment and approval. See our design support and ODM engineering services for the full process.
Q2: The bottle needs to carry a professional sports team logo with gradients and multiple colors — which print method do you recommend?
UV full-color print is the correct method for photographic or multi-gradient team logos. It handles unlimited colors, precise logo registration, and fine-line detail that silk screen cannot achieve at these scales. UV print is applied to the flat/semi-flat panels of the bottle and is water-resistant (not dishwasher-proof for high-resolution prints — hand wash recommended). For primary branding without gradients, silk screen in up to 4 spot Pantone colors produces a cleaner, more durable result and is fully dishwasher-safe. We can produce an approval sample with both methods for your review.
For Wholesalers & Distributors
Q3: What is the carton quantity and CBM (cubic meter) for a standard shipment of 5,000 units in collapsed/flat form?
Collapsed silicone sport bottles pack very efficiently. A standard master carton holds 50–100 units depending on packaging type (polybag vs. retail box). For a 5,000-unit polybag order, you are looking at approximately 0.8–1.2 CBM total, which fits comfortably in an LCL shipment alongside other goods or into a single shared container slot. Full packing list dimensions are provided at the quotation stage. This storage efficiency is a meaningful advantage over rigid stainless or plastic bottles for importers managing warehouse space. Visit our manufacturing capabilities page for full production output and facility details.
Q4: Are there in-stock (blank, no logo) units available for fast-turn testing before committing to a branded order?
Yes — plain, unprinted stock inventory is maintained in 5–6 standard colors (typically black, grey, blue, green, and one or two neon options). Stock units are available with a lead time of 3–5 business days from order confirmation. Minimum order for stock items may be lower than branded MOQ (as low as 100 units for some colors, subject to availability). Contact us for current stock levels. Many distributors use stock units for trade show samples before placing their branded production run.
For Promotional Products & Gifting
Q5: We need 8,000 units for a company wellness event in 60 days. Is this achievable, and can you guarantee delivery?
8,000 units in 60 days is achievable with silk screen logo in a standard color, assuming order confirmation (PO + deposit) is received within the first 5 days of inquiry. Production runs 25–35 days; standard ocean freight adds 12–18 days. For tighter deadlines, air freight is available (add 7–10 days buffer from production completion to delivery). Delivery commitment can be written into the purchase order. We have executed event-critical orders — including FIFA World Cup Qatar 2022 merchandise — under comparable time constraints. Contact us to request a sample or get a quote for your event project.
Q6: Can the carabiner be printed or engraved with a sponsor logo?
Yes. The silicone carabiner can be deboss-engraved with a small logo or text (1–2 lines) from 1,000 units. For smaller quantities, a screen-printed hang-tag attached to the carabiner is an effective alternative. Metal carabiner upgrades with laser-engraved branding are available from 500 units. Provide your artwork in vector format (AI, EPS, or SVG) and we will render a position mock-up within 24 hours of receiving your brief.
Product-Specific
Q7: How many times can the bottle be collapsed and re-expanded before the silicone shows fatigue or creasing?
Our internal flex fatigue testing subjects the concertina-fold collapse geometry to 5,000+ full collapse-and-expand cycles. At that point, the silicone retains its structural integrity, liquid seal, and appearance with no permanent creasing, whitening, or microtear formation. In practical consumer use — where a user might collapse the bottle once per day — this equates to over 13 years of daily use. The test data is available in our QC documentation, which is shared with buyers at the sample approval stage. This durability is a product of our 21 years of silicone manufacturing experience.
Q8: Is the push-pull spout interchangeable with a standard 28mm or 38mm wide-mouth cap from other brands?
The standard cap thread on our collapsible sport bottle is a proprietary diameter sized for the bottle's neck. It is not designed to accept standard 28mm or 38mm water bottle caps. However, Mitour can produce a custom adapter ring at low tooling cost ($150–300 USD) if a brand owner needs to use a proprietary lid or integrate with an existing accessory ecosystem. Alternatively, the ODM team can redesign the bottle neck to a standard thread diameter as part of a full OEM project.
Q9: What certifications are required to sell this bottle in the EU, and can you provide them?
For EU market sale, the primary requirements are: LFGB (food contact material — German Federal Ministry standard, widely accepted across the EU), REACH (chemical substance compliance), and ROHS (for any electronic or battery-integrated accessories — not applicable to this bottle). Mitour provides LFGB, REACH, and ROHS test reports from accredited third-party labs (SGS, Intertek, or equivalent). If your destination requires CE marking under a specific directive, we can advise on the applicable framework. All certificates are current and available as PDF downloads at the quote stage. Browse our full FDA, LFGB, ISO and BSCI certifications documentation.
Q10: Does the bottle work with carbonated beverages or protein shakes?
The silicone bottle is chemically compatible with carbonated beverages — the material does not react with CO₂ or carbonic acid. However, carbonated beverages should not be stored in a fully sealed bottle for extended periods as pressure build-up may pop the push-pull spout open. For carbonated use, a screw-cap lid (available as an option) provides better seal retention. For protein shakes and post-workout nutrition drinks, the bottle is suitable and can be cleaned thoroughly by turning the silicone body inside-out — eliminating residue that can harbor odor in standard bottle interiors.
Describe your project and receive pricing and a sample proposal within 24 hours.
