Views: 0 Author: Peter Cui Publish Time: 2026-06-05 Origin: Mitour Silicone
Table of Contents
TL;DR For Bulk Promotional Buyers
In early 2026, a procurement lead for a multi-country sports mega-event sent us a request that would test every system inside our 4,500 m² Shenzhen factory: 22,000 mascot-printed silicone bottles, single shipment, 30-day deadline, no buffer.
Add complications: complex three-character mascot artwork. Late address-print confirmation. International freight rates climbing daily amid global supply-chain disruption. Mid-stream consideration of order cancellation.
We delivered all 22,000 units to the consolidation point on May 25, 2026 — inside the original window. The buyer's words after the shipment was on the water were short: "I don't know how to put it, but I can feel you guys are seriously good."
This is the full story — what made it possible, what almost broke it, and the five lessons procurement professionals can take away when they need to place a five-figure-unit silicone bottle order under a hard deadline.
The buyer landed on our website in mid-December 2025 looking at a competitor's silicone bottle. The artwork they wanted to apply was large, multi-color, and detailed — three character mascots representing the host nations of a 2026 global sports tournament, printed across the front face of the bottle.
We knew within ten minutes that the competitor product they had bookmarked could not carry that artwork at production scale. The print area was too narrow. The surface curvature was wrong for a multi-color pad-print registration. Reject rates on that geometry would run 8–12 %, which on 22,000 units means 1,800–2,600 wasted bottles, plus a month of rework none of us had.

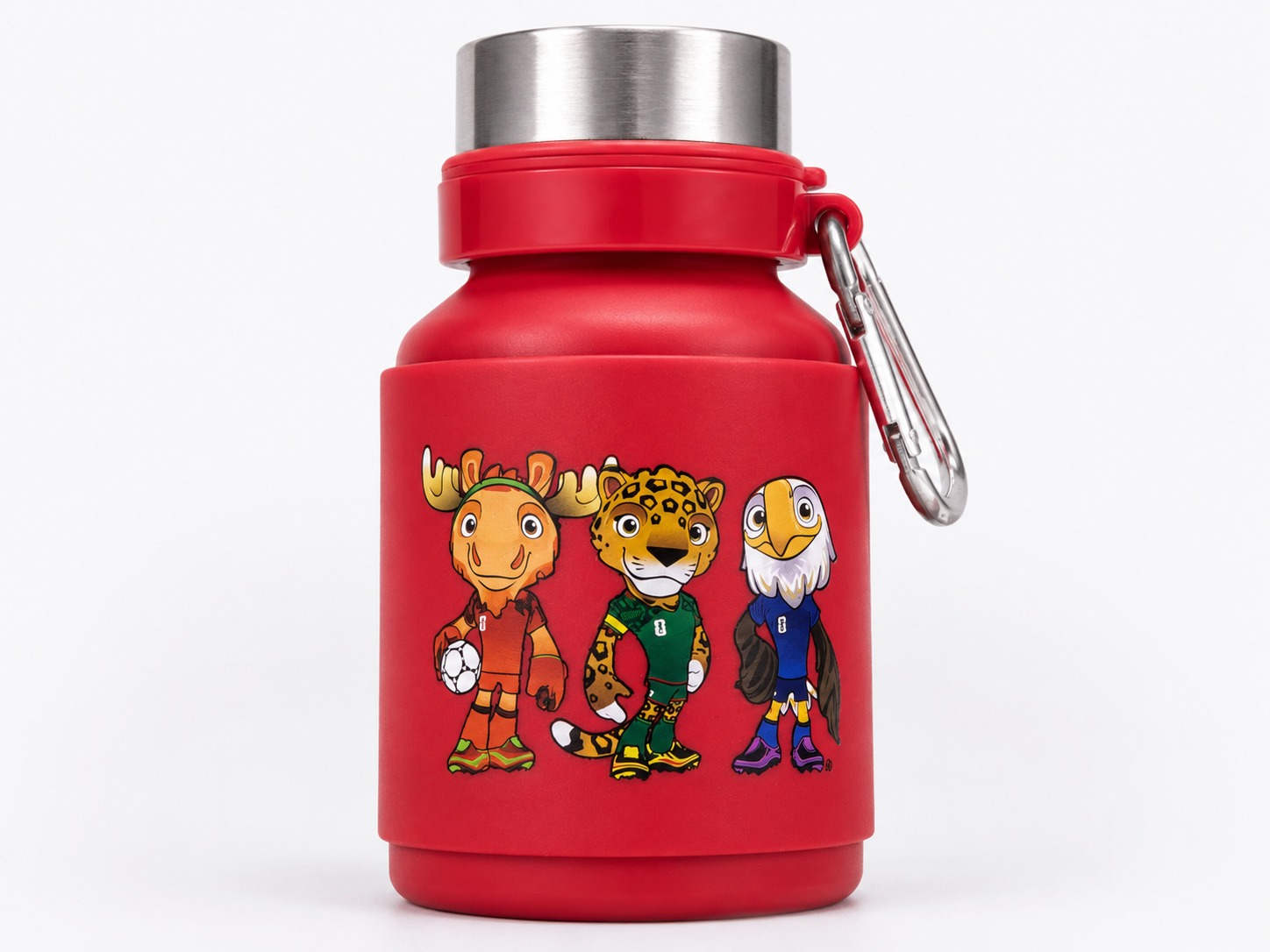

We recommended our 06 Mid-Loop Collapsible Silicone Bottle instead. The mid-section has a flat, near-vertical pad-print panel measuring roughly 50 × 60 mm — enough to land all three mascot characters at recognizable resolution with controlled color separation. The integrated carabiner loop on the cap gave the buyer a built-in clip-on feature for fans walking between match venues. The bottle collapses to roughly one-third of its standing height when empty, so the shipping density per carton was significantly better than a rigid stainless or Tritan equivalent.
Within the same conversation we covered:
Factory credentials: 21 years in silicone OEM (since 2005), 4,500 m² facility, 100+ employees, 20+ LSR machines, 30,000 units/day standing capacity, 300+ patents on file including 3 core invention patents, BSCI + Disney FAMA + ICTI audited
Past relevant work: Walmart audit-passed factory since 2019, Target since 2019, Disney FAMA license since 2022, plus dozens of anonymized promotional-gift programs for Fortune 500 buyers
The artwork challenge: complex three-character mascot, large print area, four-color minimum
Address printing: a separate pad-print panel on the back of the bottle reserved for the venue/event address line
The buyer requested a sample by end of week. From first inquiry to sample shipped: 7 days.
The message came in at the back end of a normal Wednesday. The buyer was a procurement specialist for a major sports-event merchandising program. They had three specifications already locked:
Volume: 22,000 units, single shipment
Use case: official event giveaway for July 2026 matches
Artwork: three host-country mascots, full color, plus an event venue address printed on the back
What they did not have yet: final venue address (which would not be confirmed until tournament logistics were locked four months later), final mascot artwork file (still under review by the event's creative team), and a confirmed PO.
I responded the same day. We walked through:
Why our 06 bottle would carry the artwork better than the bookmarked competitor SKU
How we would handle the four-color mascot pad-print: separate plate per color, full color match against the supplied Pantone reference, three-pass registration test on a 50-piece pilot before any production
How we would handle the address pad-print: a separate plate to be cut only after final address confirmation, with the rest of the bottle finished and quarantined ready to receive the address print on demand
Our standard 7-day sample lead time, faster if the buyer could send the mascot vector files within 48 hours
Pricing for three production tiers: 10,000 / 20,000 / 30,000 units
The buyer accepted the recommendation that night. They asked us to courier a plain (non-printed) sample of the 06 bottle to the end client for material approval first, before we cut any plates.
Lesson embedded here: When the artwork is complex and the volume is large, do not rush into plate-cutting on day one. Get the bottle body approved first. Plate costs are sunk costs — confirming the substrate before you cut the plate saves both sides time and money if the end client wants a different bottle.
We pulled a plain 06 bottle from our finished-goods bonded inventory, polished it, packed it in a foam-lined box, and shipped it via international express on December 19. The end client received it on the morning of December 23 (their local time).
By December 25 we had verbal sign-off on:
Bottle body geometry — approved
Material grade — platinum-cured food-grade silicone, FDA + LFGB compliant, approved
Cap and carabiner clip — approved
Color of bottle body — locked to red Pantone 186 C, matching the event's primary visual identity color
What was still not approved: the mascot artwork itself. The event's creative team had two competing versions of the mascot illustration and wanted to see both pad-printed on a real bottle before they committed.
The buyer asked: Can you print both versions, two test bottles each, and ship within 7 days?
This is where the conversation in our internal chat went something like the screenshots that later went viral inside our team:
Buyer: "可以的，你们能做到这样的生产支持，也是很有实力" — You can really do this kind of production support. That's serious capability.
Mitour Silicone: "这个水壶我们有5套模具，所以您放心接单，交期咱都不怕" — We hold five sets of molds for this bottle. Go ahead and place the order. Lead time is the last thing you need to worry about.
The five-mold note matters. Most factories run one mold per SKU on a promotional-gift bottle. When the order is 22,000 units in 30 days, one mold becomes the bottleneck. With five identical mold cavities, we can run the bottle on five LSR injection machines in parallel — which is exactly what we needed for what came next.
Once the test bottles landed, the iteration cycle started. Over the next three weeks the artwork team and the buyer cycled through:
Mascot size: started too small relative to the bottle face, two enlargements, locked at 42 mm tall
Mascot color separation: tested 4-color, 5-color, and 6-color separation; final lock at 5 colors plus a dark outline pass for definition
Color box (gift packaging): thickness moved from 250 gsm corduroy to 300 gsm matte-lam, then to 350 gsm with spot UV on the mascot — final lock at 350 gsm matte-lam, no spot UV (cost trade-off)
Color box design: three rounds of dieline and graphic revision
Process selection on the bottle: pad-print vs. heat transfer vs. silk-screen; we recommended pad-print for the curved face and the buyer agreed after seeing direct sample comparisons
Address pad-print position and font: locked geometry on the back, font held open pending the actual address
Total time from artwork file v1 to fully-locked artwork v4 plus color-box dieline v3: 5 working days of intensive sample iteration on our side. Mascot plate-cut, color-box plate-cut, address-print plate-prepared (locked geometry, blank text plate pending address confirmation). The buyer received the final approval samples on January 14, 2026.
At this point the project went quiet. The address would not be confirmed for another three months. We held all five mold sets on standby and reserved a tentative production window in our planning system without committing capacity yet.
On April 23, 2026 — four months and five days after the first inquiry — the buyer's PO landed in my inbox. Three things had finally fallen into place:
The venue address line was confirmed and the address plate could now be cut
The end client signed the final artwork and color-box
The funding ledger for the merchandising program cleared
The PO terms:
Quantity: 22,000 units
Delivery deadline: May 25, 2026 — to a consolidation point in Shenzhen, ready for air freight booking
Reason for the hard deadline: the only viable air freight slots before the July matches were already booking out. Miss May 25 and there were no remaining flights that would land before the event teams needed merchandise in-country
No buffer: a slip of more than 48 hours forced a switch to ocean freight, which would not land in time, which meant the order had no commercial value
That gave us 32 calendar days to cut the final address plate, run 22,000 units across five LSR machines, complete five-color pad-print on the mascot plus single-color pad-print on the address, assemble cap and carabiner, fold and pack into 350 gsm color boxes, master-carton out, and palletize to the freight consolidation point.
Day one of production was administrative. The PO was countersigned and 30 % deposit was wired by end of business April 23. We received the wire confirmation morning of April 24.
April 24 morning: the address plate was sent to our in-house print shop. Plate cut and proofed by April 25 noon. First test print on a pilot bottle that afternoon. Two minor font-size adjustments. Final approved address plate locked April 25 evening.

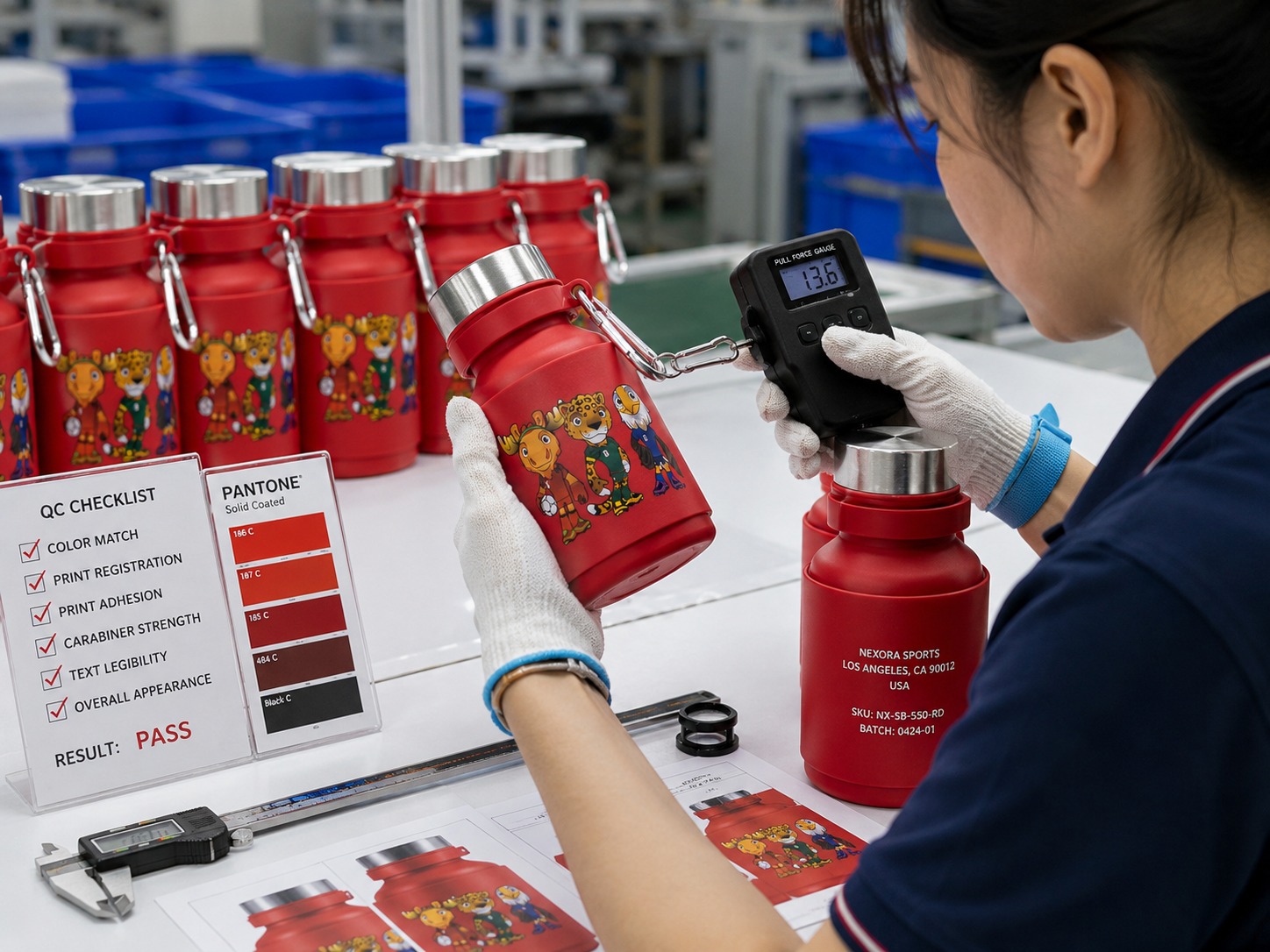

April 26 morning: pilot run of 100 bottles across all five mold cavities, full 5-color mascot pad-print + 1-color address pad-print + cap and carabiner assembly + color-box packing. QC checked all 100 against the approved sample, including:
Mascot color match against the approved Pantone strip — within ΔE 2.5 tolerance
Print registration on all three mascot characters — no visible offset at arm's-length
Address font legibility — confirmed at 4-pt minimum stroke width
Carabiner pull-test — 5 kg static load held for 30 seconds, no deformation
Color-box close-and-open cycle — 20 cycles without scuff at corners
Pilot batch approved April 27 morning. Mass production released April 27 afternoon.
That's six days from PO to full mass production go-live, including weekend work for our print, mold-prep, and QC teams.
Mass production ran from April 27 afternoon through May 18 morning. The math on paper looked tight but workable:
22,000 units / 5 mold cavities = 4,400 units per cavity
LSR cycle time on the 06 bottle: 90 seconds per shot
Theoretical raw molding throughput: 22,000 × 90 sec / 5 machines = ~110 hours of machine time, plus changeover and downtime buffer

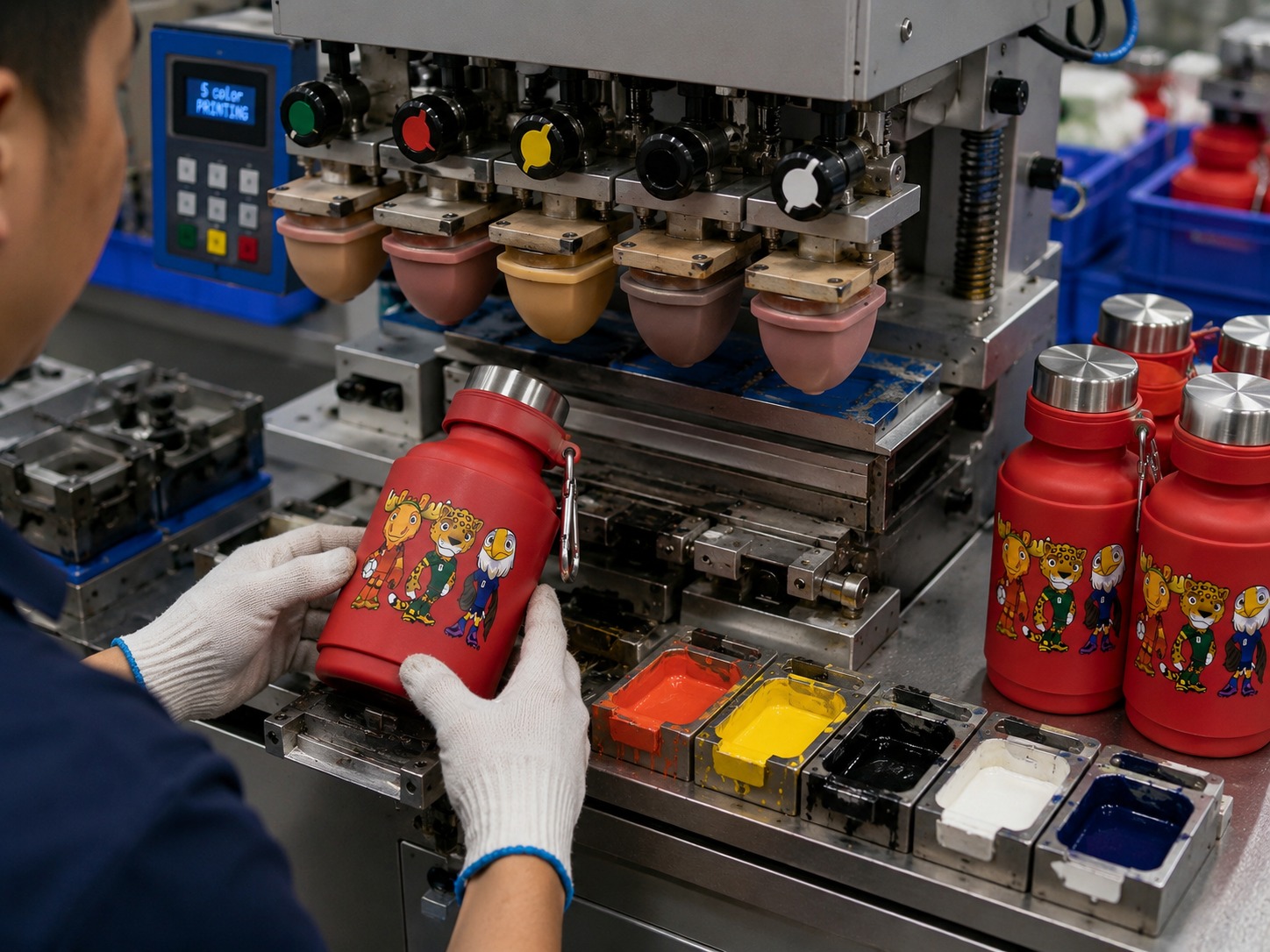

The real bottleneck was never molding. It was the five-color mascot pad-print.
Pad-print is sequential. One color, dry, register, next color, dry, register, repeat. A five-color print plus one dark outline pass plus the back-side address print means seven press strokes per bottle, each with its own drying interval. Even on our dedicated promotional-gift pad-print line with two parallel stations, the realistic throughput on a 7-stroke job is ~1,200 bottles per station per day, both stations running 22 hours a day with shift handover.
We assigned all four of our pad-print stations to this job — two on the standing promotional-gift line, plus two stations we redirected from a lower-priority decorative-tableware order whose buyer agreed to a one-week push-back in exchange for a unit-price concession (we ate the concession on our margin).
The pace held. By May 18 morning all 22,000 mascot-printed and address-printed bottles were sitting on our assembly line ready for cap + carabiner + color-box.
Roughly three weeks into the four-month wait between sample sign-off and PO, international freight rates began to climb. By the time the PO landed on April 23, container rates on the trans-Pacific routes had moved up sharply from where they sat at the end of 2025, and air-freight slot pricing was tracking the same direction. The cause was a combination of capacity withdrawal and active disruption on key shipping lanes — the kind of freight environment buyers in 2026 will remember for years.
Early May, between Day 10 and Day 14 of production, the buyer's CFO ran the numbers again. The all-in landed cost of the merchandise was now meaningfully above the budget originally approved in the December planning cycle. The buyer asked an honest question: would we be willing to consider order cancellation, full refund of the deposit, and walking away?
That email came on a Saturday. I answered before end-of-day.
The answer was no — not because cancellation was contractually impossible (it was — the deposit was non-refundable per our standard PO terms, and we could have stood on that) — but because once a buyer walks away from a project at the production stage, the relationship rarely recovers. We told the buyer:
Production is already 35 % complete. Stopping now wastes the deposit and leaves you with no merchandise for the event.
We are not asking you to absorb anything beyond the original PO. The agreed PO price holds. Freight is between you and the freight forwarder.
We will hit May 25. The factory is committed. If we miss, every penny of the deposit comes back and you keep whatever finished units we've already pad-printed at no cost.
The buyer's reply came the next day. Two messages, ten seconds apart:
I don't know how to put it, but I can feel you guys are seriously good.
The buyer chose to honor the PO. We stayed on schedule.
May 18 to May 22: cap + carabiner assembly across our standing assembly line, three shifts. Each bottle gets a final visual QC by the assembly operator before it goes into its color box.
May 22 to May 24: color-box packing, four bottles per inner display tray, eight inner trays per master carton, 32 bottles per master carton. Total 688 master cartons. Each carton sealed with branded tape, batch-coded, weighed, and palletized — 22 master cartons per Euro pallet, 32 pallets total.
May 24 evening: full sample retention pull — 22 bottles randomly selected, one from every 32nd carton, photographed against the approved sample for the project archive. Two bottles boxed and held for the buyer's post-shipment QC review.
May 25, 2026, 11:30 a.m.: all 32 pallets loaded onto two 40 ft trucks bound for the consolidation point in Shenzhen, where the buyer's appointed freight forwarder took receipt.
Deadline hit. Inside the window. Zero short-shipment.
If you're a buyer evaluating whether a Chinese silicone supplier can credibly take a 20,000-plus unit order under a 30-day deadline, these are the questions to put on the table:
One mold cavity per SKU is the industry default. If your supplier holds only one mold and quotes a 30-day delivery on 22,000 units, do the math: 22,000 units × LSR cycle time on a 90-second job / 86,400 seconds in a day = 22.9 production days of pure molding alone, with zero buffer for changeover, QC reject, plate maintenance, or holiday loss. That's mathematically impossible without parallelism.
We hold 5 cavities on the 06 bottle. Three of those cavities came online in late 2023 specifically because two large promotional-gift orders in mid-2023 stressed our two-cavity capacity to breaking point. We sat down after that program and made the capital decision to build three more cavities so we'd never lose a $200k+ order again to capacity ceiling. The 22,000-unit program is the direct payoff of that decision.
For your supplier evaluation: ask how many cavities, on what specific machine list, with what cycle time per shot. A serious supplier answers in two minutes.
Decorating throughput, not molding throughput, is the bottleneck on any printed promotional bottle. A factory with four mold cavities and one pad-print station has a slow pad-print line, not a fast factory.
We run four pad-print stations with a fifth in service-ready cold standby. Two are permanently dedicated to the promotional-gift line. The other two can be reassigned from tableware decoration with 48 hours' notice and the right margin trade. That flexibility is what closed the gap on this 22,000-unit job.
For your supplier evaluation: ask to see the decoration line layout in person or by video walkthrough, and ask how many stations are dedicated vs. shared.
In early 2026, freight rates moved a lot inside a single week. If your supplier quotes you EXW or FOB, surcharge risk is yours — and that is the correct allocation. What your supplier can control is whether the production schedule holds despite the freight environment, and whether they stand by the PO price they quoted you in December when the freight environment was different.
We held the agreed PO price. Freight was between the buyer and their forwarder. The factory ate zero of the freight surcharge but lost zero margin on the deal price. That allocation needs to be in writing in your PO, not assumed.
A five-color mascot pad-print, plus a single-color address pad-print on the back, is two separate print jobs requiring tight registration between them. If your supplier subcontracts even one of those jobs to a print shop down the street, you introduce a logistics layer that can swallow 2–3 days per pass.
We pad-print everything in-house. Our print shop and our assembly line share a single building. Bottles do not travel during decoration.
The address line on the back of the bottle in this project was not confirmable until April 2026. That meant we could not cut the address plate until April 25, 2026. But we could cut everything else — the mascot plate, the color-box dieline, even the carton printing — months in advance. When the late information landed, we needed five days, not five weeks, to get the address plate live.
For your supplier evaluation: ask which production assets they will cut before final information lock, and which ones they hold pending lock-in. A serious supplier separates the two and gives you a written schedule.
The buyer arrived on our site referencing a competitor SKU. Within ten minutes we knew that bottle could not carry the artwork the project required. Bringing the artwork to the substrate conversation first, instead of locking the substrate before the artwork is reviewed, saved this project from a 1,800-unit reject pile.
When you brief a supplier, lead with: here is the artwork, here is the print area we need, here is the color separation we need. Then ask the supplier to recommend the SKU. A real OEM will sometimes recommend against their own most popular SKU if a less common one is the better technical fit.
Stage 1: plain bottle (no print) for substrate approval — material, geometry, color, hardware. Cheap, fast, no plate cost.
Stage 2: print proof on the approved substrate — mascot rendering, color match, registration, address legibility.
If you collapse these into one stage, you either delay your plate-cut waiting for substrate approval, or you cut plates against a substrate the end client might still reject. Both outcomes cost you 1–2 weeks. Stage them.
Almost every event-promotion order has at least one piece of information that locks late: the venue address, a dated commemoration line, a winner's name, a sponsor logo. Identify those line items at PO drafting and confirm with your supplier which plates they will hold pending lock.
A supplier that batches plate-cutting on day-one regardless of information lock will either: (a) cut a wrong plate and re-cut later (you pay twice), or (b) wait for all info before starting anything (you lose weeks). Insist on a written plate schedule.
In a volatile freight market, the temptation is to renegotiate everything when shipping costs move. That is the fastest way to break a supplier relationship. Keep the PO price fixed, allocate the freight surcharge clearly in the original PO (most often to the buyer under EXW or FOB Incoterms), and rely on the supplier's commitment to ship on time as the value they bring to the volatility.
If a freight surcharge actually breaks the buyer's budget, the right conversation is about volume re-scoping or splitting the order across two delivery dates — not about clawing back the per-unit price.
When freight rates spiked during this project, the buyer's CFO ran the numbers and floated cancellation. The factory's response in that 48-hour window is the single most important moment in the entire project.
A supplier that responds with "if you cancel, here is what we keep from the deposit" is technically within their contract rights and strategically about to lose the customer forever.
A supplier that responds with "the price holds, we will hit the date, if we miss every penny comes back to you" converts the worst moment of the project into the moment the buyer commits to a multi-year relationship. Choose a supplier who knows the difference.
If you are reading this as a buyer, the question worth asking is: what specifically inside this factory made the 30-day deadline survivable? Honest answer in five points:
Multi-cavity tooling on the SKU: five mold cavities on the 06 bottle, built up over three capital cycles since 2020, enable parallel LSR production that one-cavity factories cannot match.
In-house decoration: four pad-print stations, all in the same building, no subcontracted decoration step. Bottles do not leave the factory during decoration.
Reservable capacity on adjacent lines: when this job needed two extra pad-print stations, we negotiated a 7-day push-back with a tableware buyer on a lower-priority job. We ate the margin concession to keep both buyers whole. That kind of capacity reshuffling is only possible when you have multiple stations and buyers who trust you enough to accept the conversation.
In-house plate shop: mascot plate, color-box plate, address plate — all cut on premises. No 48-hour courier loop to a print shop.
A CEO and a sales lead willing to say "the price holds": the freight conversation in early May was not delegated. I (Peter Cui) answered the buyer's cancellation email personally, on a Saturday, before end-of-day, and held the line on the PO price. That moment is not a process. It is a posture.
Metric | Value |
Total units delivered | 22,000 |
SKU | 06 Mid-Loop Collapsible Silicone Bottle, red Pantone 186 C |
Mold cavities used in parallel | 5 |
Pad-print stations dedicated | 4 |
Print passes per bottle | 7 (5-color mascot + dark outline + back-side address) |
Color box | 350 gsm matte-lam, single-piece, custom dieline |
Master carton config | 32 bottles per carton, 688 cartons total, 32 Euro pallets |
First inquiry to first sample | 7 days |
First inquiry to artwork lock | 28 days |
PO date | April 23, 2026 |
Delivery deadline | May 25, 2026 |
Delivery actual | May 25, 2026, 11:30 a.m. |
Days of production from PO | 32 calendar days, 6 days from PO to mass-production go-live |
Short shipment | Zero |
Post-shipment customer satisfaction | High — written customer quote on file |
Plate-cutting and pilot run: 5–7 days. Mass molding on a multi-cavity SKU: 8–12 days. Decoration (multi-color pad-print): 10–14 days depending on stroke count. Assembly and color-box packing: 4–6 days. Realistic floor for 20,000 units, multi-color print, no buffer: 28–32 days. Anything quoted under 21 days for this profile is either marketing or single-mold heroics that fail in week three.
For a 30-day delivery window: minimum 3 cavities, comfortably 5. With 2 cavities the math is tight even with overtime. With 1 cavity the math is impossible — physical machine time alone exceeds the calendar.
Direct comparison on the 06 bottle, 22,000-unit run: five-color mascot + back-side address is approximately 3.5–4× the per-unit decoration cost of a single-color front-only print, driven mostly by additional plate cost amortized over the run and the slower line speed at 7 strokes per bottle. Past 25,000 units the per-unit gap narrows because the plate cost amortizes further.
Yes — we routinely hold sample-approved tooling and finished-good prototypes in our bonded sample room for 90+ days at no charge. Mold sets stay on the rack indefinitely. What the supplier cannot hold for free is reserved production capacity. Confirm with your supplier whether they're holding the sample only, or also reserving capacity, and what the cost is if they are.
Under EXW or FOB Incoterms (the most common for China-origin silicone bottle orders), the freight surcharge falls to the buyer. The supplier's commitment is the PO price for the merchandise and the agreed pack-out date. Confirm this allocation in writing in your PO. A serious supplier will not chase the freight surcharge into your contract; an inexperienced supplier might try to.
Folded silicone bottles ship dense — a 32 ft⊃3; master carton holds 32 bottles in this configuration. 22,000 units = 688 cartons ≈ 22 m³ ≈ one 40 ft container or roughly 3.5 m³ × 6.5 air pallets. For event deadlines under 4 weeks: air freight, typically split across 2–3 flights to fit slot availability. For deadlines over 6 weeks: ocean LCL or full container. For this project: air freight, single consolidation point in Shenzhen.
Three diligence steps before placing the PO:
Ask for the mold cavity list with photographs of the actual molds on the rack, not a generic spec sheet
Ask for the decoration line layout with a count of pad-print, screen-print, heat-transfer stations and which are dedicated vs. shared
Ask for two recent customer references for orders in the same volume band, and call them. A supplier who refuses references is not a supplier you place a 22,000-unit order with.
The buyer of a tournament-merchandising program will usually ask for one or more of: BSCI social compliance audit (for retail-grade brand reputation), ICTI or Disney FAMA if children might be users, food-contact (FDA + LFGB) for any drinkware, plus product test reports against the relevant market (Prop 65 for the U.S., REACH for the EU). We hold all of the above and can produce current valid reports inside 24 hours.
Yes — once the tooling, plates, and color-box dieline are made, the per-unit cost on a reorder typically drops 5–8% because the one-time tooling and plate costs are amortized. The 30-day production window still applies for a follow-up volume above 10,000 units; smaller follow-up orders (under 5,000 units) can typically ship in 18–22 days on a slot-availability basis.
Working backward: 10–14 days for sea freight (if applicable) or 5–7 days for air freight to landing point. 28–32 days for production on a 20,000+ unit multi-color job. 14–21 days for artwork iteration and sample approval. 7 days for initial inquiry, supplier evaluation, and substrate approval. Total: roughly 60–80 days from first inquiry to merchandise in-country, comfortably; tight floor is 45 days. For a July event, that means starting no later than mid-April; comfortably, mid-March.
