Views: 0 Author: Peter Cui Publish Time: 2026-06-09 Origin: Mitour Silicone
Table of Contents
TL;DR — A commercial silicone baking mat is a composite structure: an E-glass fiber mesh core (35–75 gsm) encapsulated in platinum-cured silicone rated to 230°C continuous use. Getting the glass weight, silicone durometer, and cure system right determines whether your product survives 2,000+ wash cycles — or delaminates after 200. At Mitour Silicone, we produce FDA- and LFGB-dual-certified baking mats from our 4,500 m² Shenzhen facility, with MOQ from 300 units per SKU and standard sheet-size tooling already in house.
Silicone baking mats are fiber-reinforced composite structures, not solid silicone — the E-glass mesh is structural, not decorative.
Fiberglass mesh weight (gsm) is the primary determinant of rigidity, flatness retention, and long-term wash durability.
Platinum-cure silicone is mandatory for food contact at baking temperatures — peroxide-cure yellows and bleeds oils above 180°C.
Standard buyer SKUs: half-sheet (16.5" × 11.6"), full-sheet (24" × 16"), and French macaron template mat (with printed circles).
Temperature rating: -40°C to +230°C for continuous use; short-duration peaks to 260°C acceptable.
MOQ 300 units per standard size; custom sizes need dedicated tooling (lead time 20–35 days from tooling approval).
Dual FDA + LFGB certification is standard from our production line — same cost, included in unit price.
Most brands source silicone baking mats treating them as a commodity. They specify color, size, and thickness — then wonder why their product yellows after six months or develops an oily surface residue after 300 oven cycles. The answer is almost always in two places: the fiber core specification and the cure system.
Layer 1: E-Glass Fiber Mesh
E-glass (electrical-grade glass) fiber woven into a plain-weave mesh is the structural backbone of every commercial baking mat. The specifications that matter:
Mesh weight (gsm): 35 gsm = lightweight, flexible (good for macaron mats and pastry rolling mats). 55 gsm = mid-weight, the standard for half-sheet and full-sheet baking mats. 75 gsm = heavy commercial grade, used in foodservice institutional mats that need to lay perfectly flat in conveyor ovens.
Yarn count: Finer yarns (lower tex count) produce a smoother silicone surface because encapsulation is more complete. Coarser yarns create a subtle texture on the surface — sometimes desirable for anti-stick performance, sometimes not, depending on the application.
Weave tightness: Tighter weave = less silicone penetration through the mesh = thicker mat possible without delamination risk. Looser weave = lighter mat but higher risk of fiber exposure at cut edges.
We stock E-glass mesh in 35, 55, and 75 gsm at our Shenzhen facility. Most retail consumer baking mats we produce for Walmart and Target use 55 gsm mesh — it hits the right balance of flexibility (rolls up for storage), flatness under baking loads, and durability through dishwasher cycling.
Layer 2: Platinum-Cured Silicone Compound
The silicone used in baking mats must be platinum-cured. This is non-negotiable for any serious food-contact application above 180°C, and here is the manufacturing reason:
Peroxide-cured silicone undergoes continued oxidative degradation above 180°C. The decomposition byproducts — primarily acetophenone derivatives and short-chain siloxane oligomers — migrate to the mat surface as a visible oily film. The mat "bleeds." It also yellows progressively as the silicone matrix oxidizes. Neither the oil bleed nor the yellowing is a safety catastrophe at low concentrations, but both are visible to the consumer and create returns.
Platinum-cured silicone, using hydrosilylation crosslinking, produces a fully crosslinked network with no organic decomposition products. At 230°C continuous, a well-post-cured platinum silicone mat shows zero oil bleed and no yellowing after 2,000 oven cycles. We tested this in Q1 2024 against our own archive samples from production lots dating to 2021 — same platinum formulation, still clean.
The anti-yellowing chemistry: The key is not just platinum cure — it is platinum cure combined with proper antioxidant loading (hindered phenolic type) and absence of any transition metal contamination in the pigment system. Iron, copper, or manganese contamination in colorants catalyzes oxidative degradation even in platinum-cured material. Our approved pigment library for baking mats excludes all pigments with detectable transition metal content above 10 ppm.
After producing baking mats for over a decade, our most-ordered configurations are well-defined. We keep standard mold bases for these sizes, which reduces your tooling cost to a mold insert change rather than a full tool build.
SKU | Dimensions | E-Glass Weight | Thickness | Temp Rating | Primary Use |
Half-Sheet Mat | 16.5" × 11.6" (419 × 295 mm) | 55 gsm | 0.75 mm | -40°C to 230°C | Home baking, cookies, roasting |
Full-Sheet Mat | 24" × 16" (610 × 406 mm) | 55 gsm | 0.75 mm | -40°C to 230°C | Commercial/prosumer baking |
Macaron Template Mat | 16.5" × 11.6" | 35 gsm | 0.60 mm | -40°C to 230°C | Uniform macaron sizing |
Pastry Rolling Mat | 24" × 20" (610 × 508 mm) | 55 gsm | 1.0 mm | -40°C to 230°C | Pastry, dough rolling |
Round Pizza Mat | 12" dia (305 mm) | 55 gsm | 0.75 mm | -40°C to 230°C | Pizza, flat bread |
French Macaron Mat specifics: This is a differentiated SKU that adds significant brand value. The template circles (typically 1.5" / 38 mm diameter, 24 or 32 circles per half-sheet) can be printed directly into the silicone surface using food-grade pigment during the compression molding process — no separate ink step. We recommend printing template circles in a contrasting color to the mat body (e.g., gray circles on a red mat). The circle print is integral to the material, not a surface coating, so it does not fade or transfer to food.
Temperature rating methodology: The -40°C to +230°C rating reflects continuous-use testing, not peak-excursion testing. We test sustained temperature at 230°C for 500 hours with periodic mass loss measurements (ASTM D573-04 for rubber heat aging, adapted). Mass loss threshold: < 1% at 230°C / 500 hours. Peak excursion to 260°C: acceptable for up to 30 minutes without measurable degradation. Do not exceed 260°C under any conditions — above that temperature even platinum silicone begins to depolymerize at the surface.
Every baking mat we produce runs on a dual-certified formulation. This is not an upsell — it reflects our standard production formulation for all food-contact silicone.
FDA compliance runs through 21 CFR 177.2600 (rubber articles intended for repeated use). The E-glass fiber component is separately confirmed as food-safe per FDA 21 CFR 186.1257 (glass fibers). Our hexane extractables test for the composite structure: typically 1.8–2.3 mg/in², well under the 20 mg/in² ceiling.
LFGB compliance requires third-party migration testing per BfR Recommendation XV (silicone elastomers). For baking mats, the relevant simulants include olive oil at 175°C / 2 hours (fatty food, high-temperature simulation) and 3% acetic acid at 70°C / 2 hours. Our LFGB test results: overall migration < 1.0 mg/dm² in all simulants (limit: 10 mg/dm²). Organoleptic panel: no detectable off-taste or off-odor. Certificates are issued by SGS Shenzhen (accreditation number CN/SGS-CSTC/0001) and available in our certifications documentation.
What this means for your brand: You can use a single SKU for both US and German/European retail. Your US packaging references FDA 21 CFR 177.2600 compliance; your EU packaging carries the LFGB certificate reference. No dual inventory. No reformulation for different markets.
Producing a silicone baking mat correctly requires more steps than most buyers expect. The compounding, calendering, and fiber-sandwich assembly are all sequential and each has a failure mode.
Step 1 — Compound mixing
Fumed-silica-reinforced PDMS base (Shin-Etsu or Wacker) + platinum catalyst + heat stabilizer package + color masterbatch. Mixed in a temperature-controlled internal mixer (Banbury type) to Shore A 40 durometer target for baking mat applications. Shore A 40 gives the right combination of non-stick surface behavior and adequate stiffness to handle without floppiness.
Step 2 — Calendering (sheet formation)
The mixed compound is calendered through precision rolls to produce uniform-thickness sheets at the target caliper (0.60 or 0.75 mm depending on SKU). Caliper variation across sheet width must be held to ±0.05 mm — wider variation creates uneven heat transfer in oven use.
Step 3 — Fiber sandwich assembly
The E-glass mesh is laid between two calendered silicone sheets. The assembly enters a flat-bed compression press (not an injection mold) at 170°C, applying 150 bar. The silicone flows through the fiber mesh weave during cure, fully encapsulating the glass. This step requires precise control of compound viscosity (too high = poor fiber penetration; too low = silicone bleed out of mat edges).
Step 4 — Post-cure
Secondary oven cure at 200°C for 4 hours to volatilize residual low-molecular-weight siloxane oligomers (D4/D5/D6 fractions). This step is mandatory for LFGB compliance and cannot be shortened.
Step 5 — Edge trimming and finishing
Mat edges are trimmed to final dimensions on a die-cutting press with tolerance ±1.0 mm. Edge quality matters — exposed glass fiber at a cut edge is an immediate rejection. Our edge inspection protocol flags any mat with visible fiber at the cut edge.
Step 6 — QC testing
100% visual inspection + random pull-strength testing (peel adhesion between silicone and fiber layers, minimum 15 N/25 mm). Dimensional check, thickness check, surface defect check (bubbles, pinholes, resin starved areas). Migration test sampling: 1 unit per 5,000 production batch for certificate traceability.
Step 7 — Packaging
Most brands request retail packaging with product branding, care instructions, and certifications listed. We support roll-pack (mat rolled and banded) or flat-pack (mat folded with cardboard insert). Custom printed packaging is available from MOQ 300 units, lead time 20–35 days from packaging artwork approval.
Standard sizes (shared mold base)
MOQ: 300 units per color per SKU
Sample lead time: 7 days for plain (unprinted) samples from existing tooling
Mass production lead time: 20–30 days from approved sample sign-off
Tooling cost: Zero for standard sizes (half-sheet, full-sheet) — mold is in house
Custom sizes or custom template prints (macaron circles, ruler markings, grid patterns)
MOQ: 300 units
Tooling cost: USD 800–2,500 depending on template complexity
Sample lead time: 7 days after tooling completion
Mass production lead time: 25–35 days
Color customization
Standard color library (42 validated food-contact colors): no additional cost
Custom Pantone match: USD 200 color development fee, matched within 2 sample iterations
Branding options
Deboss brand name or logo into mat surface (integral, permanent)
Printed template markings in contrasting color
Hang tag and retail packaging with full custom print
A German cookware brand we work with sources our full-sheet baking mats for private-label distribution across DACH retail. Their order volume runs approximately 8,000 units per year across three colors, split between half-sheet and full-sheet SKUs. We maintain a 60-day rolling inventory buffer for their standard sizes to support their seasonal peaks (Q4 Christmas bakeware season). This kind of VMI arrangement is available for brands ordering above 2,000 units per year — discuss at the OEM/ODM inquiry page.
Before sending a purchase order for branded baking mats, verify the following with any supplier — including us:
Cure system confirmed as platinum — ask for platinum catalyst certificate from the raw material supplier
E-glass mesh weight specified — 55 gsm for standard consumer; 75 gsm for commercial/institutional
Migration test report available — full simulant battery, not just a one-page LFGB logo certificate
Post-cure protocol documented — temperature, duration, oven validation records
Edge inspection protocol — confirm zero exposed glass fiber at cut edges
Pigment system cleared for food contact — BfR Recommendation IX compliance for colorants
Macaron template print confirmed integral (not surface-applied ink) if ordering template mats
Packaging artwork approved before tooling release
Using the wrong E-glass weight: Brands sometimes spec 35 gsm mesh to reduce cost. At 35 gsm, a full-sheet mat (24" × 16") will sag, curl, and develop permanent waves after 50 dishwasher cycles. The 55 gsm spec exists for structural reasons, not raw material budget reasons.

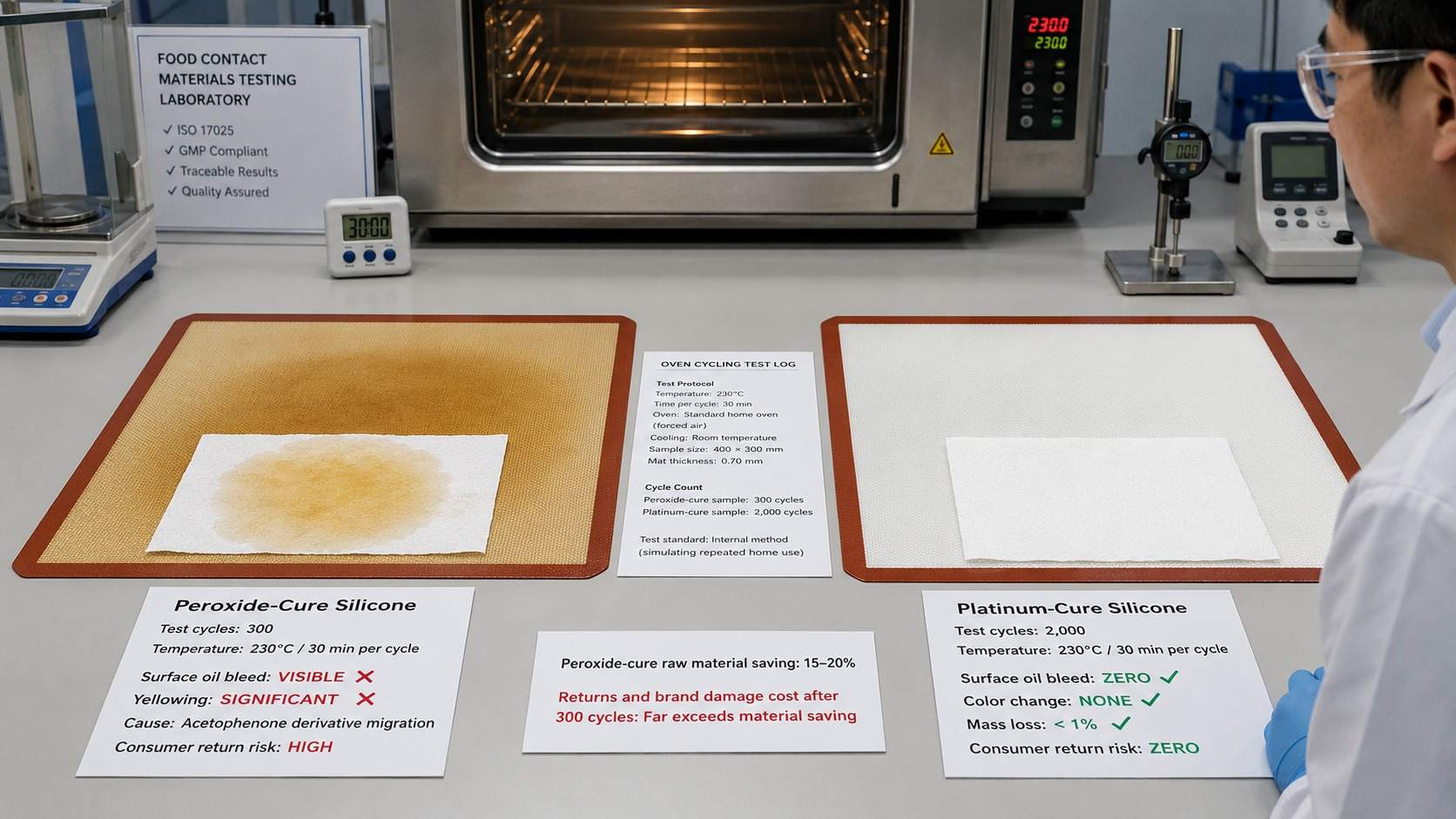

Accepting peroxide-cure at low cost: Peroxide-cured baking mats are 15–20% cheaper at raw material. After 300 oven cycles, they look like a different product — yellowed, with a tacky surface from oil bleed. The returns cost and brand damage far exceed the material saving.
Skipping post-cure to speed up lead time: We have seen factories quote 12-day lead times that are only possible by eliminating or shortening post-cure. The resulting product fails LFGB organoleptic testing and may also fail long-term oven performance. A 4-hour secondary cure is not negotiable.
Underspecifying edge trim tolerance: An edge trim tolerance of ±3 mm is common from lower-tier factories. For a product that sits inside a standard baking sheet pan, ±3 mm can mean the mat doesn't fit — a 1-star product review waiting to happen.
Shore A 40 is the target for standard consumer baking mats. This hardness provides a non-stick surface with enough body to handle the mat without it flopping — and enough flexibility to roll up for storage. Going harder (Shore A 50+) makes the mat less prone to edge curling but reduces the non-stick feel. Going softer (Shore A 30) improves non-stick but creates a mat that deforms easily when handling. Shore A 40 ±3 is our production tolerance.
Yes. Grid lines, ruler markings, and measurement guides can be printed directly into the silicone surface during molding using food-grade pigment. This is a mold insert modification, not a post-production print — the markings are permanent and do not fade. We routinely produce mats with cm and inch dual rulers for European and US markets on the same tooling, with a mold insert change.
Continuous use rating: 230°C. Peak excursion (up to 30 minutes): 260°C. Above 260°C, surface depolymerization begins. Our mats are tested to sustained 230°C / 500 hours with less than 1% mass loss. For pizza stone temperatures (280°C+), silicone baking mats are not the right product — parchment paper is more appropriate.
A properly constructed platinum-cure mat with 55 gsm E-glass mesh should withstand 2,000+ dishwasher cycles (60°C dishwasher, standard detergent) without delamination, significant color shift, or surface degradation. We test accelerated wash cycling at our Shenzhen facility — 100 cycles per test batch — before releasing new formulations.
MOQ is 300 units per SKU for standard sizes (half-sheet, full-sheet). Custom sizes or custom template patterns require tooling investment (USD 800–2,500) but the same 300-unit MOQ applies once tooling is complete. Packaging customization is available from the same 300-unit MOQ.
Yes. Macaron template mats typically feature 24 or 32 circles (38 mm diameter) in a contrasting color, positioned to leave adequate space between macarons. The circles are molded in — integral pigment, not surface printing — so they never fade, chip, or contaminate the food. We can customize circle size, count, and color for your brand specification.
E-glass fiber used in food-contact composites is confirmed food-safe under FDA 21 CFR 186.1257. The fiber is fully encapsulated in silicone during the manufacturing process — no glass fiber should be exposed at the product surface or edges in a properly manufactured mat. Our edge inspection protocol is specifically designed to catch any exposed fiber before shipment.
Yes, with custom tooling. We have produced round pizza mats, oval roasting mats, and novelty shapes (leaf-shape, star-shape for holiday SKUs). The flat-bed compression process accommodates any planar shape. Tooling cost varies by shape complexity — simple geometric shapes (round, oval) cost less than irregular shapes that require precision die cutting.
Custom baking mat projects — whether a private-label half-sheet in your brand color or a macaron mat with your logo debossed — start with a conversation about specifications. Our standard tooling means most projects can begin sampling within 7 days of inquiry.
Email: yfxy@mymitour.com
Phone: +86 199 2529 4106
Food & beverage solutions: mymitour.com/solutions/food-beverage.html
OEM/ODM process: mymitour.com/oem-odm.html
Certifications: mymitour.com/oem-odm/certifications.html
Materials guide: mymitour.com/oem-odm/materials.html
Food & Beverage Silicone Solutions — anchor: "food-contact silicone baking products"
OEM/ODM Process — anchor: "baking mat OEM process"
Certifications — anchor: "FDA and LFGB dual-certified production"
Materials Guide — anchor: "platinum-cure silicone compound"
Contact — anchor: "start your baking mat project"
Peter Cui | 21 years of silicone manufacturing experience | 4,500 m² Shenzhen facility | Walmart-, Target-, and Disney-approved supplier | Contact: yfxy@mymitour.com
