Three other factories turned it down. One quoted 1.5× our price. The challenge: drilling 7,200 holes at 0.8mm diameter without snapping the tooling. Here's how we solved it — and why 800,000 units later, the answer still holds.
Dr.LAUNDRY is one of Korea's most recognized professional laundry care brands, with deep roots in commercial laundry services and medical-grade linen care. Their clients include hospitals, hotel chains, and large-scale commercial laundry operators — environments where laundry quality isn't a preference, it's a compliance requirement.
In November 2021, Dr.LAUNDRY connected with Mitour Silicone through a China-based trading partner with a challenge that had no off-the-shelf solution.
The problem was persistent and costly: after every wash cycle, garments, bedding, and linens came out of the machine carrying fine hair, fiber fragments, and fabric debris on their surfaces. Removing this residue required manual post-wash cleaning — a labor-intensive step that drove up operational costs, slowed throughput, and generated a steady stream of end-user complaints.
Dr.LAUNDRY had tried conventional solutions. None eliminated the problem at scale. What they needed wasn't a product modification — it was a product that didn't yet exist.
The concept Dr.LAUNDRY brought to Mitour was straightforward in principle, complex in execution:

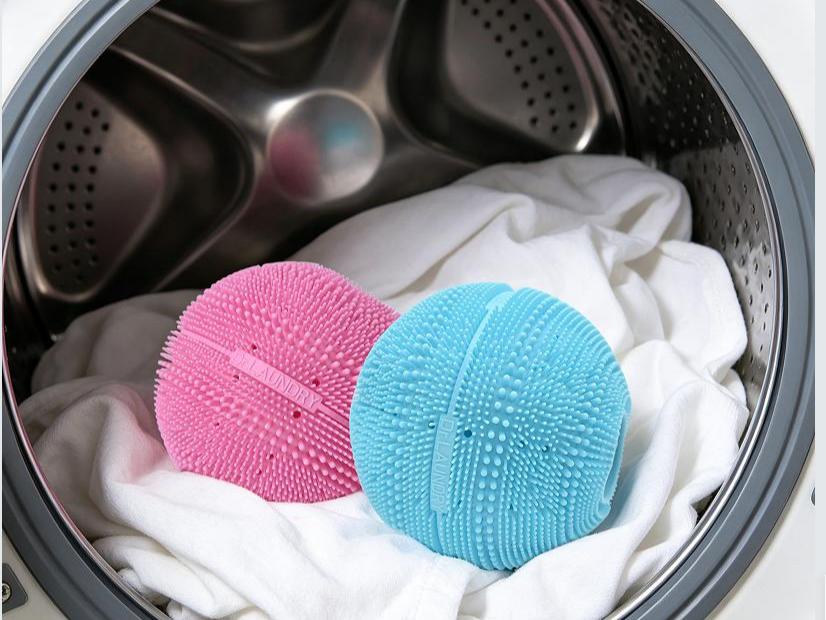

Develop a soft silicone brush accessory that goes directly into the washing machine with the laundry load. Driven by wash water turbulence, the brush bristles would make continuous contact with fabric surfaces — mechanically capturing and retaining hair, lint, and fiber debris through entanglement and adhesion. No manual post-wash cleaning. No additional process step. Just load, wash, unload — clean.
The requirements were demanding:
Must withstand repeated high-temperature machine wash cycles without bristle degradation
Bristles must be soft enough to avoid fabric damage, yet stiff enough to capture fine debris
Must not shed bristles or fragments into the wash load
Must function across standard commercial and domestic washing machine drum sizes
Must be manufacturable at a unit cost compatible with commercial laundry program economics
No existing silicone product on the market met this specification. Mitour's R&D team would need to develop it from the ground up.
Mitour's R&D team assessed the brief and identified three distinct structural approaches, each with different bristle geometry, surface coverage, and capture mechanics:
Concept | Structure | Bristle Configuration | Assessment |
Concept A | Flat oval, dual-face | Bristles on two opposing faces | Limited surface contact during tumble cycle |
Concept B | Elongated oval, quad-face | Bristles on four faces | Improved coverage, but dead zones at edges |

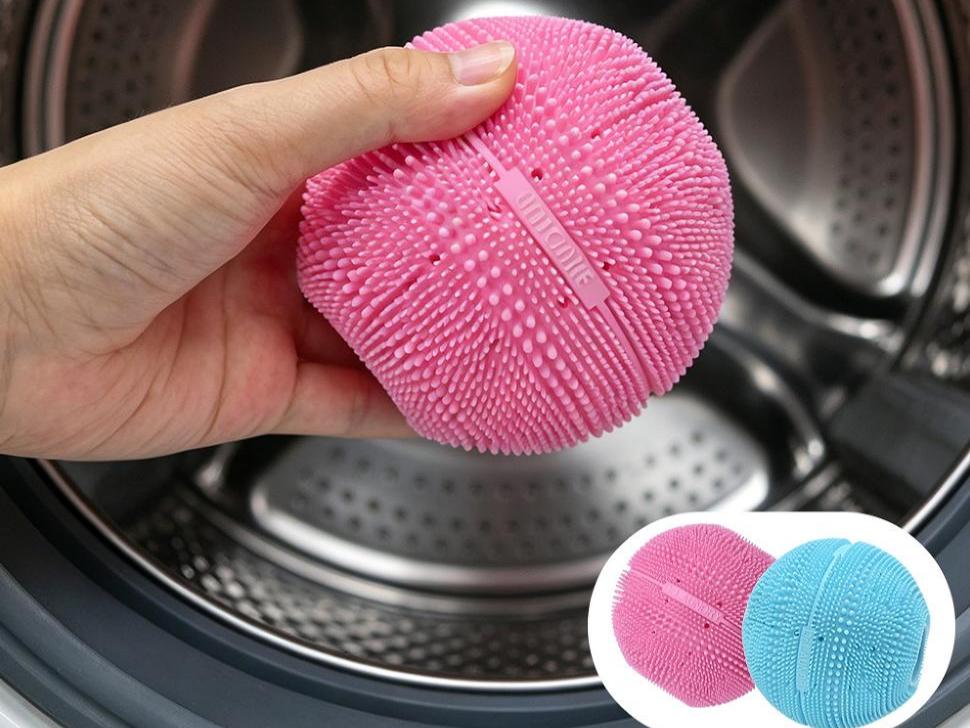

Concept C | Full-sphere, all-surface | Bristles covering entire exterior | Maximum contact surface at all tumble orientations |

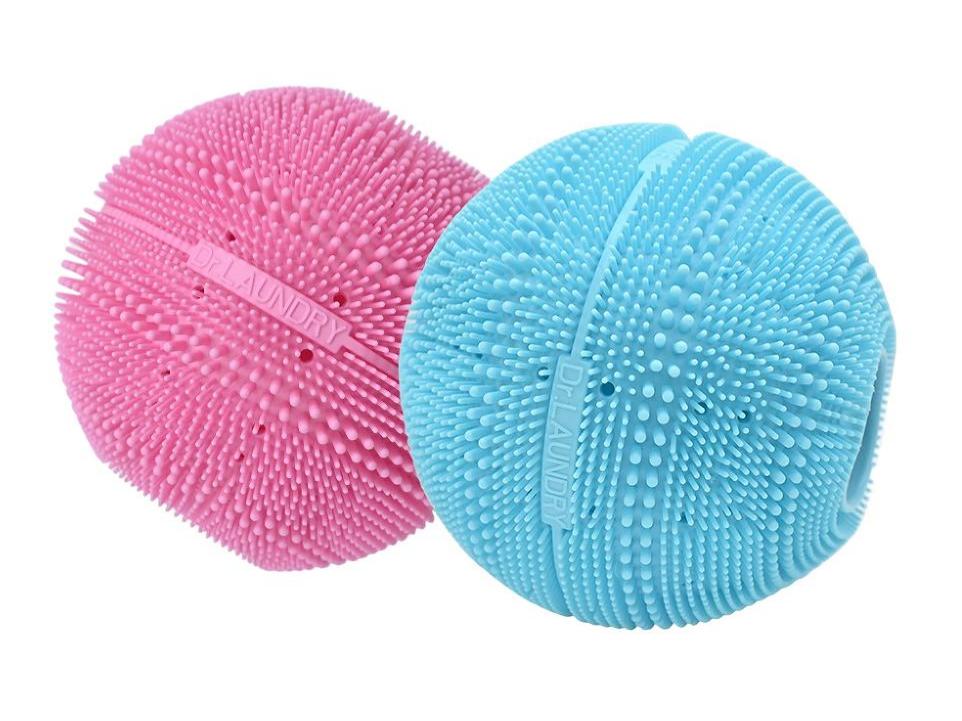

After multi-round technical review and wash-cycle simulation testing with Dr.LAUNDRY's team, Concept C — the full-sphere all-surface bristle ball — was selected as the development target. The geometry ensured that regardless of how the ball tumbled inside the drum, a bristle-covered surface was always in contact with the laundry load.
Selecting the concept was the easy part. Defining the parameters that would make it actually work — at commercial laundry intensity, across thousands of wash cycles — required 45 days of continuous iteration.
The initial prototype carried approximately 800 bristles. Testing revealed that at this density, the ball captured coarse hair effectively but missed fine fiber fragments and short pet hair — the debris type that generated the most end-user complaints in Dr.LAUNDRY's client base.

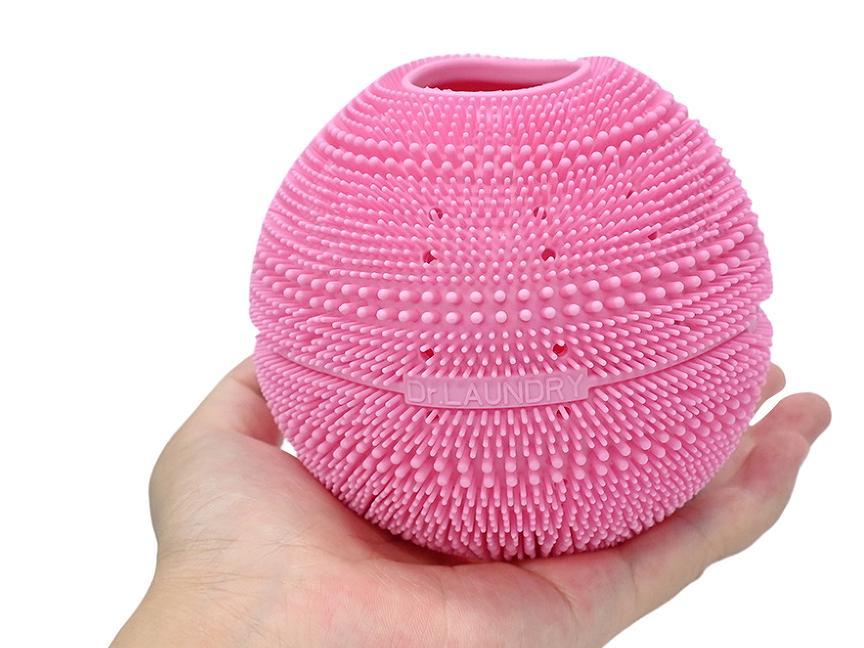

The team progressively increased bristle density across multiple prototype generations. The final specification locked at 7,200 bristles — a 9× increase over the starting point. At this density, the bristle matrix creates a capture surface fine enough to intercept sub-millimeter fiber fragments while maintaining sufficient inter-bristle spacing for water flow and debris retention.
Bristle diameter governed everything: capture fineness, flexibility, wash durability, and — critically — mold manufacturability.
Iteration | Diameter | Performance | Mold Risk |
Round 1 | 2.0mm | Captured coarse hair only | Low |
Round 2 | 1.5mm | Improved, missed fine fibers | Moderate |
Round 3 | 1.2mm | Good capture, some bristle fatigue | High |
Final | 0.8mm | Full-spectrum capture, excellent durability | Extreme |
The 0.8mm specification delivered the performance Dr.LAUNDRY needed. It also created a manufacturing challenge that would, within months, cause three competing factories to walk away from the project entirely.
When Mitour submitted the mold development quotation — RMB 158,000 — Dr.LAUNDRY's procurement team pushed back. The figure was significantly higher than their reference pricing for standard silicone mold projects, and without context for the engineering complexity involved, the gap looked like margin inflation.
The project was paused.
Over the following three months, Dr.LAUNDRY conducted a structured competitive evaluation — approaching three other specialized silicone manufacturers in China with the same specification package.
The results were unambiguous:
Factory A: Quoted 1.5× Mitour's price — and required full payment upfront, with no performance guarantee on bristle yield rate
Factory B: Declined to quote. Assessment: 0.8mm drill tooling fracture risk too high to accept commercially
Factory C: Declined to quote. Assessment: bristle demolding breakage rate in mass production could not be controlled to an acceptable yield threshold
The competitive evaluation had done what no amount of Mitour's own advocacy could have achieved: it provided independent, third-party validation of both the technical difficulty and the pricing rationale.
Dr.LAUNDRY returned to Mitour. The project was restarted — this time with full mutual trust and a shared understanding of what the engineering actually required.
For procurement professionals and product developers who haven't worked with ultra-fine silicone bristle tooling before, it's worth explaining precisely why this specification sits at the outer edge of what's manufacturable.

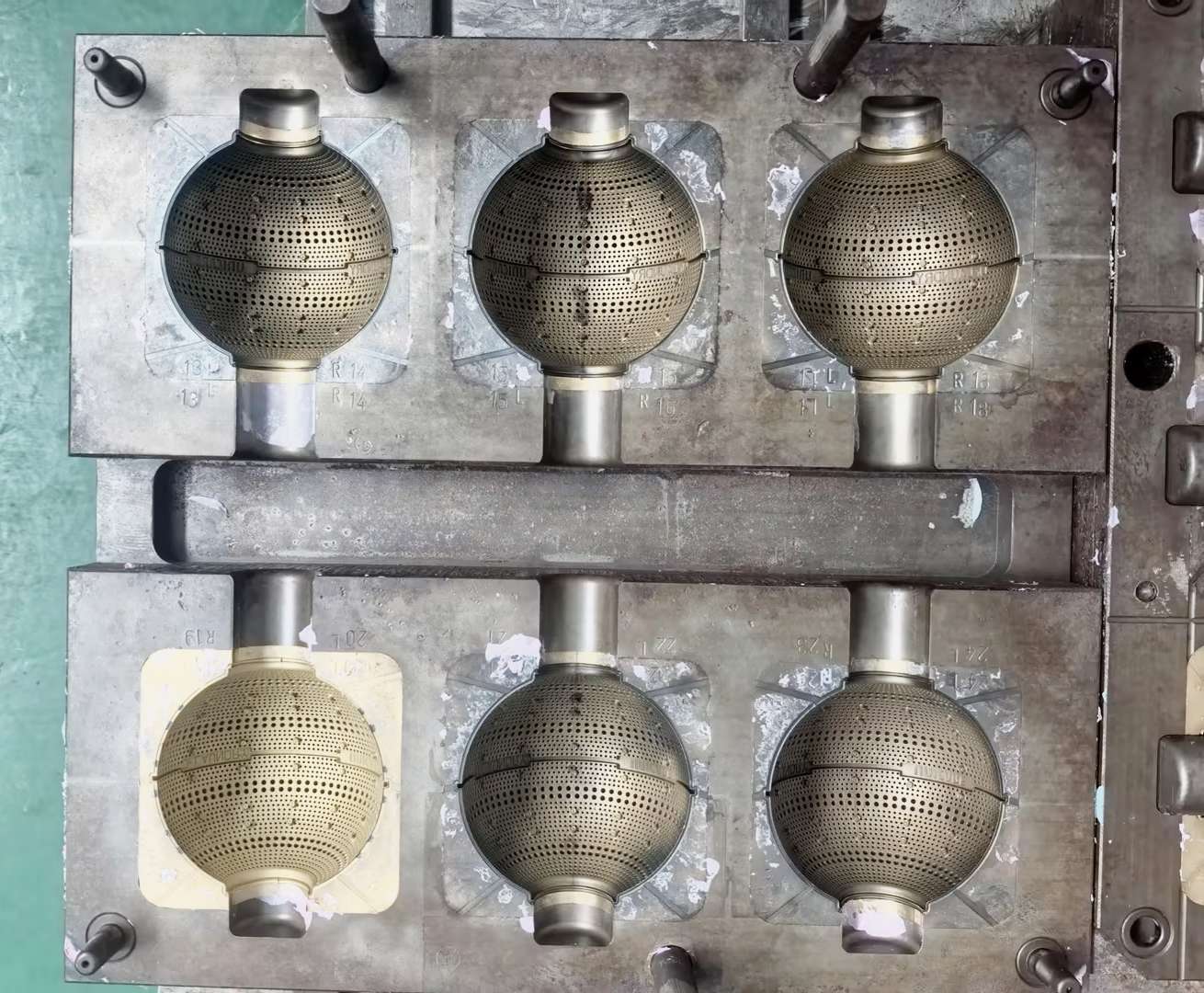

The drilling problem: Each bristle cavity in the mold must be drilled to 0.8mm diameter. At this scale, standard carbide drill bits operate at the edge of their structural tolerance. Feed rate, spindle speed, coolant flow, and material hardness must all be held within extremely tight parameters — any deviation causes the drill to fracture inside the mold block, destroying the tooling and requiring a restart. A single mold for this product requires thousands of individual drill operations.
The demolding problem: When a silicone part is ejected from its mold, the bristles must flex sufficiently to clear the mold cavity walls without snapping. At 0.8mm diameter and the aspect ratios required for effective hair capture, the bristles are operating near the mechanical limit of the silicone compound. Demolding force, ejection speed, mold temperature, and silicone Shore hardness must all be precisely calibrated. Too much force, too fast, at the wrong temperature — and the bristle tips fracture. At 7,200 bristles per part, even a 1% breakage rate per cycle makes mass production economically unviable.
The yield problem: Both of the above issues compound in mass production. A mold that performs acceptably in sampling may degrade over production cycles as drill-hole walls fatigue and demolding stress accumulates. Maintaining consistent yield across an 800,000-unit production run requires ongoing tooling monitoring, preventive maintenance protocols, and the process knowledge to identify early signs of mold degradation before they affect product quality.
This is the technical reality that caused two factories to decline the project outright, and a third to price it at 1.5× market rate with no performance commitment.
With the project restarted and specifications locked, Mitour's tooling and production teams executed in two stages:

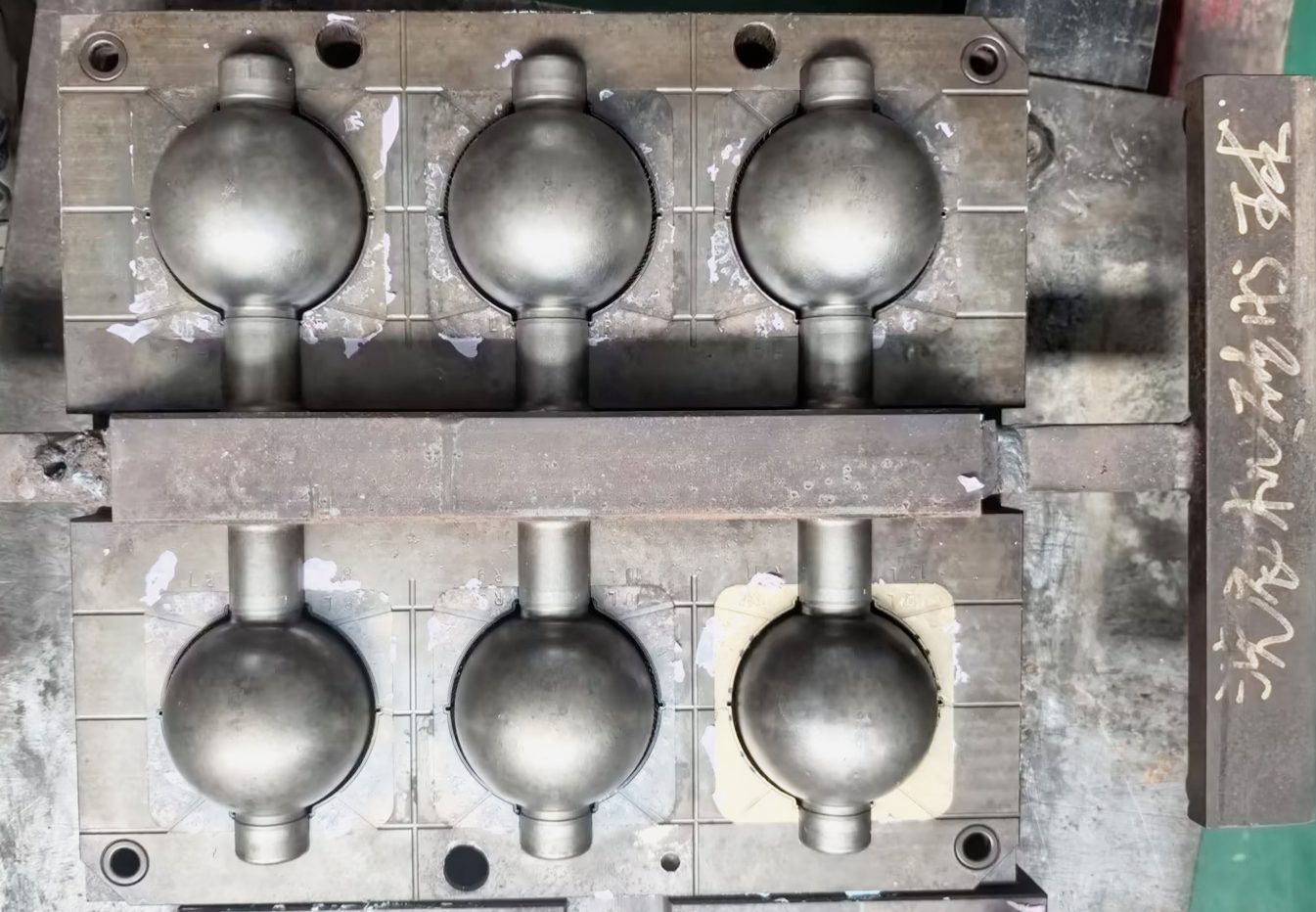

The sample mold was completed in 30 days from project restart. The T2 sample submitted to Dr.LAUNDRY passed all performance, appearance, and functional evaluations in a single review cycle — no revision required. Bristle density, diameter, flexibility, and wash-cycle durability all met specification.
Following sample approval, the production tooling set was developed and validated in 45 days, encompassing:
Full production mold fabrication with optimized drill-path sequencing to minimize tooling fracture risk
Process parameter validation across temperature, pressure, and cycle time variables
Demolding protocol development to achieve consistent bristle integrity at production speed
Yield rate qualification across a full production run sample before mass production authorization
Mass production commenced on schedule.
Since production launch, Mitour has delivered a cumulative total of 800,000 Dr.LAUNDRY custom silicone laundry brush balls — with zero batch-level quality incidents reported.
Performance outcomes across the production run:
Metric | Result |
Cumulative units delivered | 800,000+ |
Batch quality incidents | Zero |
Bristle integrity (field reports) | No breakage complaints from end-use environment |
Wash-cycle durability | Confirmed across commercial laundry operating conditions |
End-client complaint reduction | Significant reduction in post-wash manual cleaning labor reported by Dr.LAUNDRY |
The product has been deployed across Dr.LAUNDRY's commercial client network in Korea — hotel laundry operations, medical linen services, and large-scale commercial washing facilities — where it has replaced the manual post-wash debris removal step that previously added cost and time to every cycle.
The Dr.LAUNDRY relationship did not end at 800,000 units.
Following the success of the laundry brush ball program, Dr.LAUNDRY has commissioned Mitour to develop two additional custom brush-type laundry accessory products — both currently in active mold development. The scope of the partnership has expanded from a single product rescue to a long-term collaborative R&D and manufacturing relationship.
For Mitour, this trajectory reflects a consistent pattern: the clients who push back hardest on pricing before they understand the engineering are often the ones who become the most committed long-term partners once they do.
The Dr.LAUNDRY project offers a practical reference for any brand or product team navigating a technically complex silicone OEM development:
1. Get competitive quotes — but evaluate them in context.Price differences on complex tooling projects almost always reflect real differences in technical capability or risk assumption. A quote that looks high may be the only honest one in the room.
2. Prototype iteration is not waste — it's the product.Going from 800 bristles to 7,200, and from 2.0mm diameter to 0.8mm, across multiple physical prototypes isn't inefficiency. It's the only way to find the specification that actually works. Skipping iteration to save time almost always costs more time later.
3. Mold complexity drives total project cost more than unit cost.For products with extreme tooling requirements, the mold investment is the project's largest risk variable — not the per-unit price. Evaluate suppliers on their tooling capability and yield rate track record, not just their unit economics.
4. Sample approval in one cycle is a signal, not luck.When a T2 sample passes first review, it means the factory understood the brief, executed the iteration correctly, and built the mold to specification. It's a leading indicator of how the production run will go.
5. The right factory for a hard project is rarely the cheapest one.Two factories declined this project entirely. One priced it at 1.5× market rate. The factory that delivered 800,000 units without a quality incident was the one that quoted a fair price for the actual work involved — and had the process knowledge to back it up.
Yes. The Dr.LAUNDRY project — featuring 7,200 bristles at 0.8mm diameter across a full-sphere geometry — represents one of the most technically demanding bristle mold projects we have completed. Our tooling team has developed specialized drill-path sequencing and demolding protocols for ultra-fine bristle structures that allow us to achieve consistent yield rates in mass production. If you have a product concept involving fine silicone bristles, pins, or surface texture features, we're equipped to assess feasibility and provide an honest evaluation of the engineering requirements.
We treat concept-stage inquiries as engineering briefs, not sales conversations. Our R&D team will assess the functional requirements, propose structural concepts, and develop physical prototypes for testing — typically presenting two to three differentiated approaches before converging on a development direction. For the Dr.LAUNDRY project, we developed three distinct structural concepts before the client selected the full-sphere design. This parallel-concept approach reduces the risk of committing to a direction that doesn't perform in real-use testing.
For standard complexity silicone products, sample mold development typically runs 15–25 days. For high-complexity projects involving ultra-fine features, multi-surface geometry, or novel structural elements — such as the Dr.LAUNDRY brush ball — sample mold development runs 25–35 days, with production mold development following in 40–50 days after sample approval. These timelines assume a locked specification; projects with ongoing parameter changes will require additional cycles.
Before authorizing mass production, our process engineering team runs a full production cycle qualification — producing a statistically significant batch under production conditions and measuring yield rate, dimensional consistency, and surface quality against specification. For products with known failure modes (such as bristle fracture during demolding), we also implement in-process monitoring protocols and preventive tooling maintenance schedules to catch degradation before it affects product quality. The 800,000-unit Dr.LAUNDRY run with zero batch quality incidents is the outcome of this approach applied consistently.
Yes. The Dr.LAUNDRY partnership was established through a China-based trading company, and we work extensively with trading intermediaries who manage the brand relationship on our behalf. We provide the same level of technical documentation, R&D transparency, and production reporting to trading partners as we would to a direct client. We understand that the trading company's credibility with their brand client depends on our performance — and we take that seriously.
For silicone products used in washing machine environments, the primary material considerations are thermal stability (resistance to repeated high-temperature wash cycles), mechanical durability (resistance to flex fatigue and abrasion), and chemical compatibility (resistance to detergent and fabric softener exposure). Our standard production silicone compounds are platinum-cured and comply with FDA and LFGB food contact standards — which also cover the material safety requirements for laundry accessory applications. Full material test reports are available upon request.
